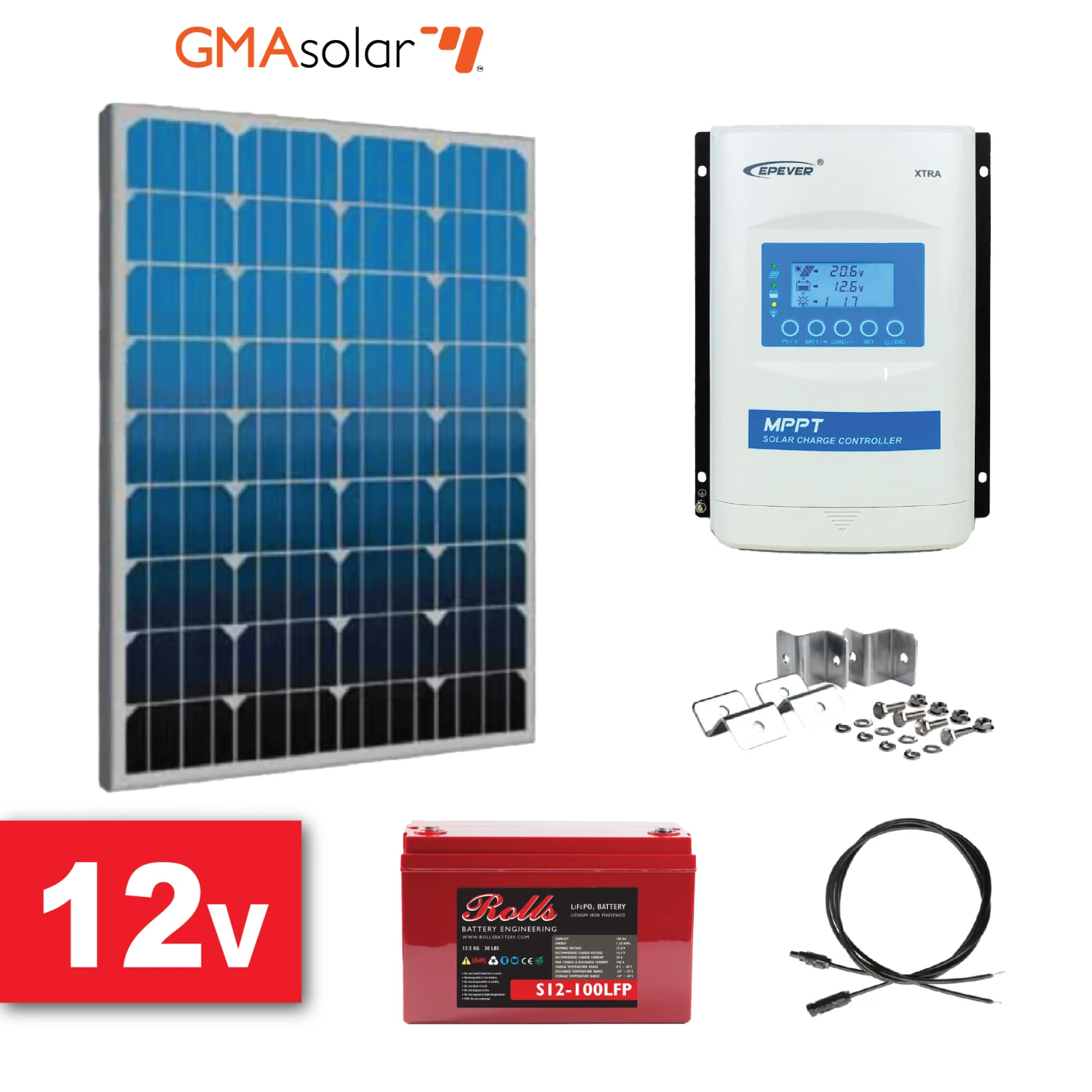

100 Watt 12V Canadian Solar Kit With Rolls LiFePO4 1280WH Battery

This Solar Kit is ideal for RV’s, Boats, Tiny Homes and basic DC electrical requirements.  Check out our optional DC to AC Power Inverters .

This Solar Kit Includes:

GMA Solar Panel Bundle Includes:

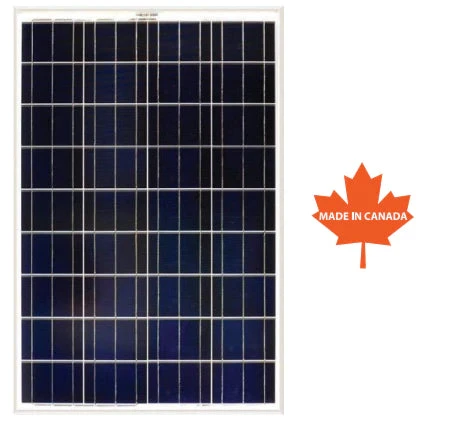

• 100 Watt GMA Solar Panel
• 4 x Z-Brackets for mounting

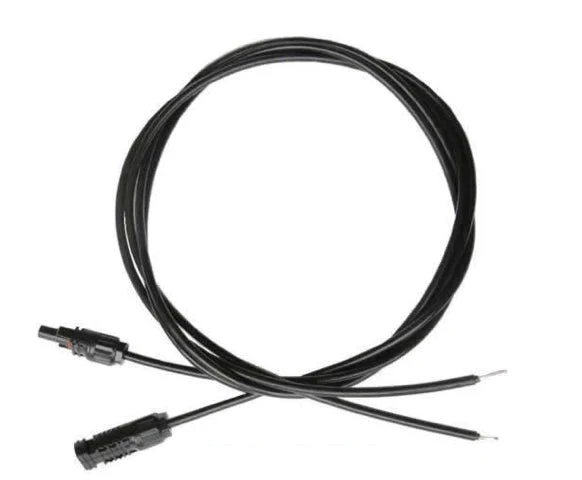

• 20ft #10 Stranded PV wire pair with MC4 Connectors

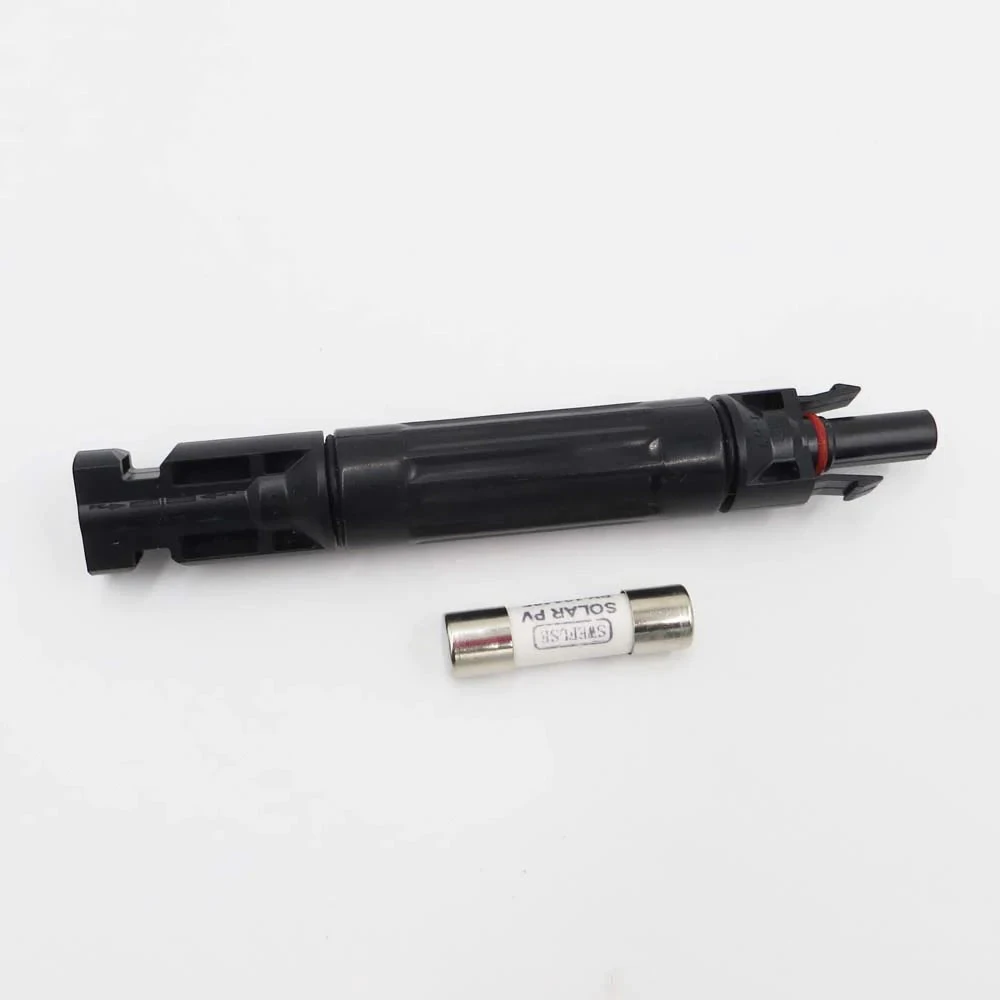

• 15 Amp Inline MC4 Fuse

What makes GMA Solar different? Well to start, these panels are 100% manufactured in Canada, and unlike the competition they come backed with a performance and workmanship guarantee. So be wary of competitors offering cheap imported & uncertified panels – if you’re looking for quality, you’ve found it with GMA.

Our 100-watt solar panels have been designed for a wide range of applications for charging 12 or 24 volt batteries, making them perfect for your off-grid camp, cabin, cottage, boat, or RV.

Download:

Features:

• Wattage:100W
• CSA Certified
• Cell Type: Polycrystalline
• Unique black panel on black frame
• Waterproof design
• Waterproof MC4 connectors
• Multiple panels can be connected for increased charging power
• Dimensions (inches): 26.5 wide x 39.5 tall
• Maximum Power Voltage (Vmp): DC 17.2V
• Maximum Power Current (Imp): 5.82A
• Open Circuit Voltage (Voc): DC 21.6V
• Short-Circuit Current (Isc): 6.9A

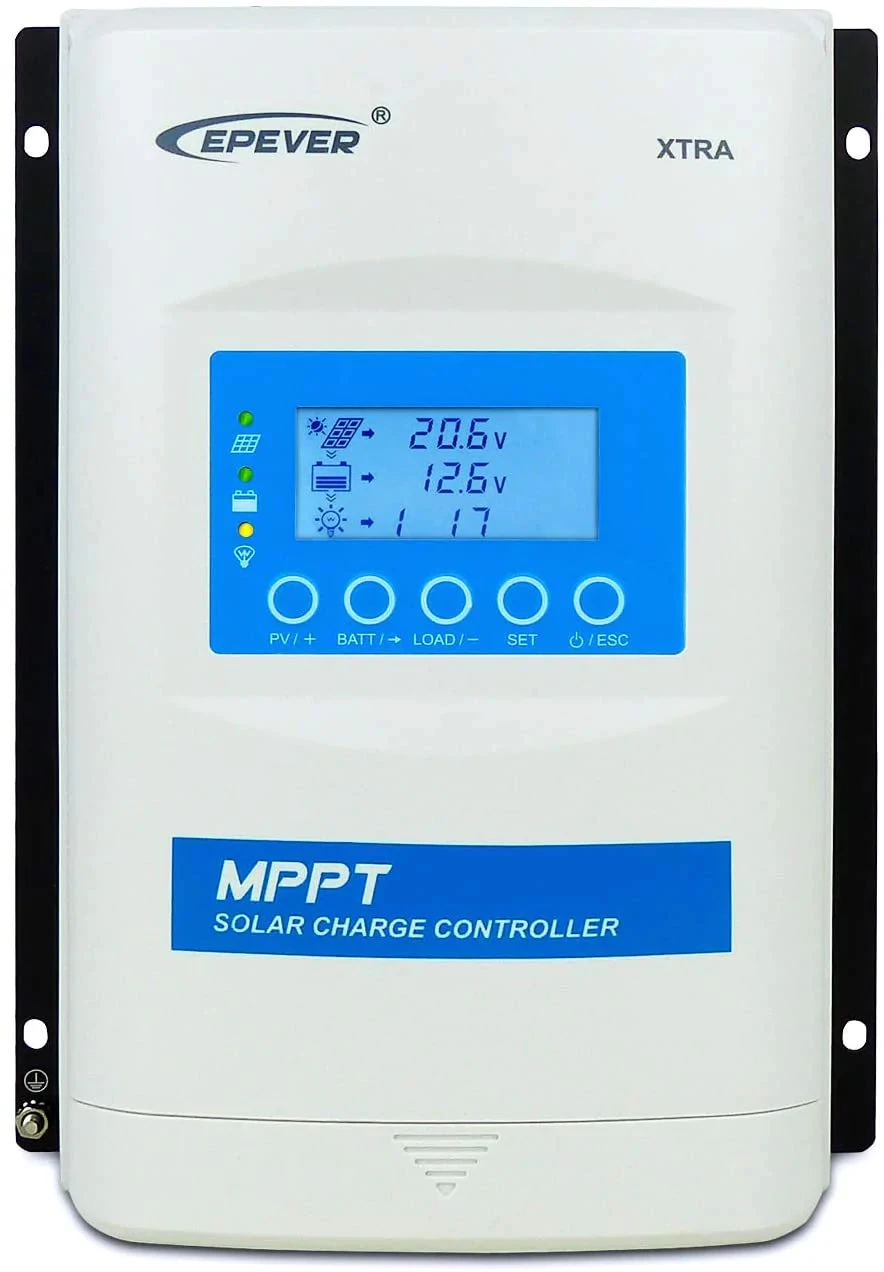

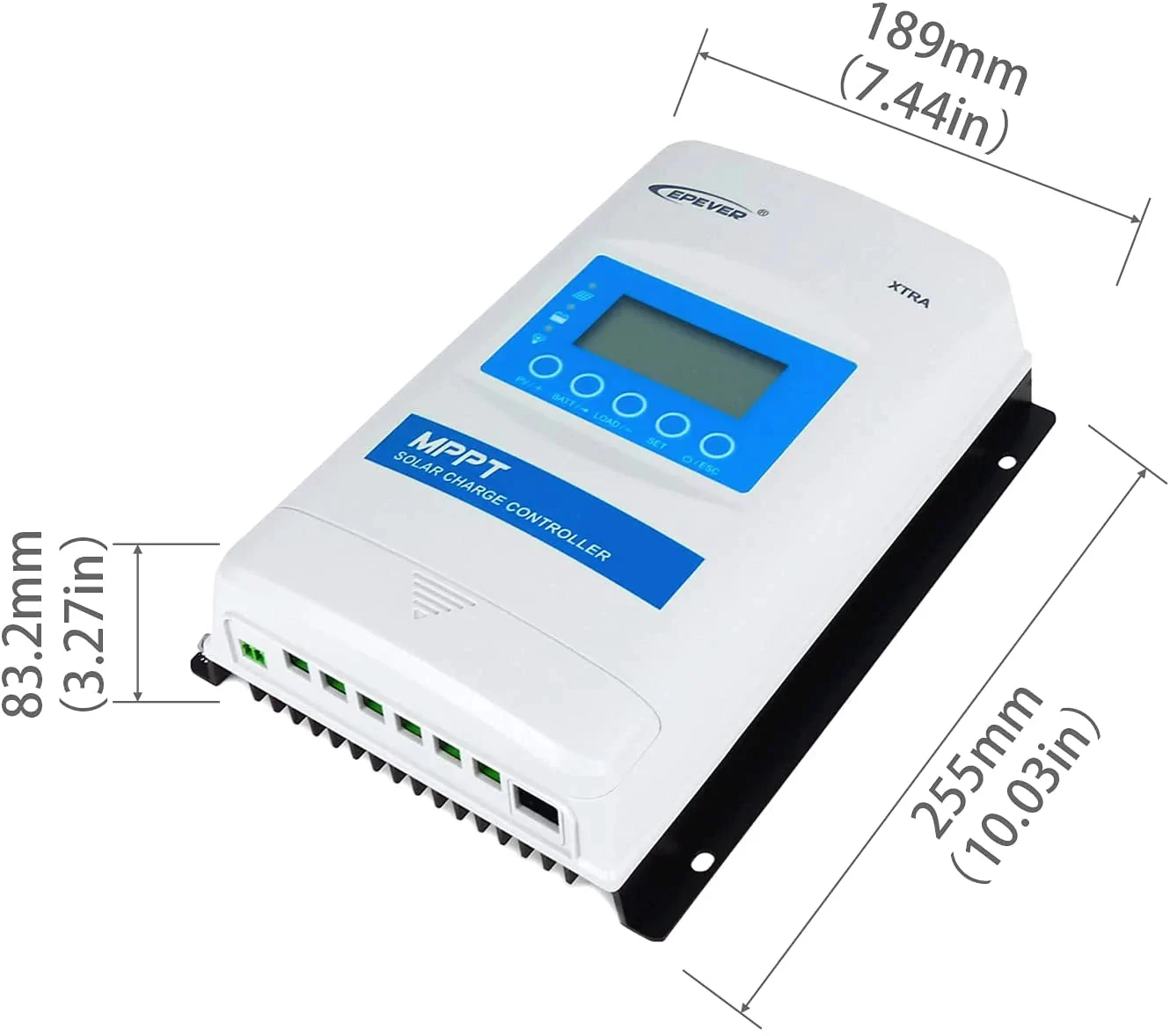

EP Solar EPEver 20A MPPT charge controller

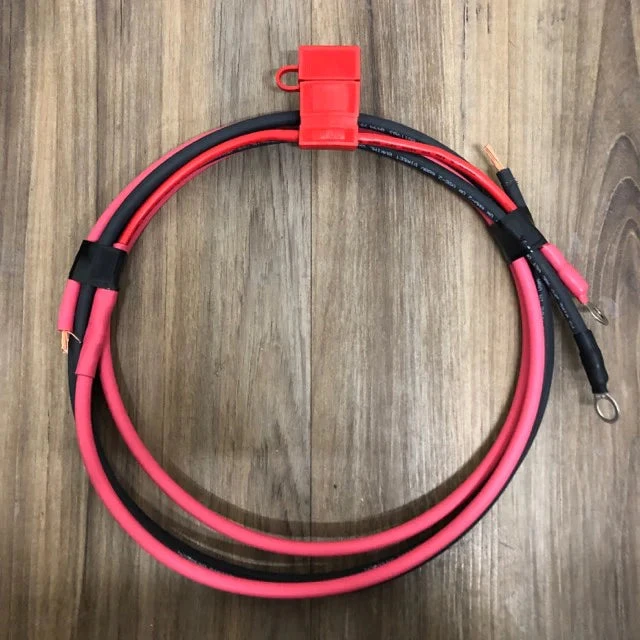

• #10 AWG Stranded Controller to Battery Cables Included.
• 20AMP Inline Fuse Included.

XTRA2210N-XDS2

ETL Certified

12v/24v

100vDC Input

Includes battery temperature sensor!

Download:

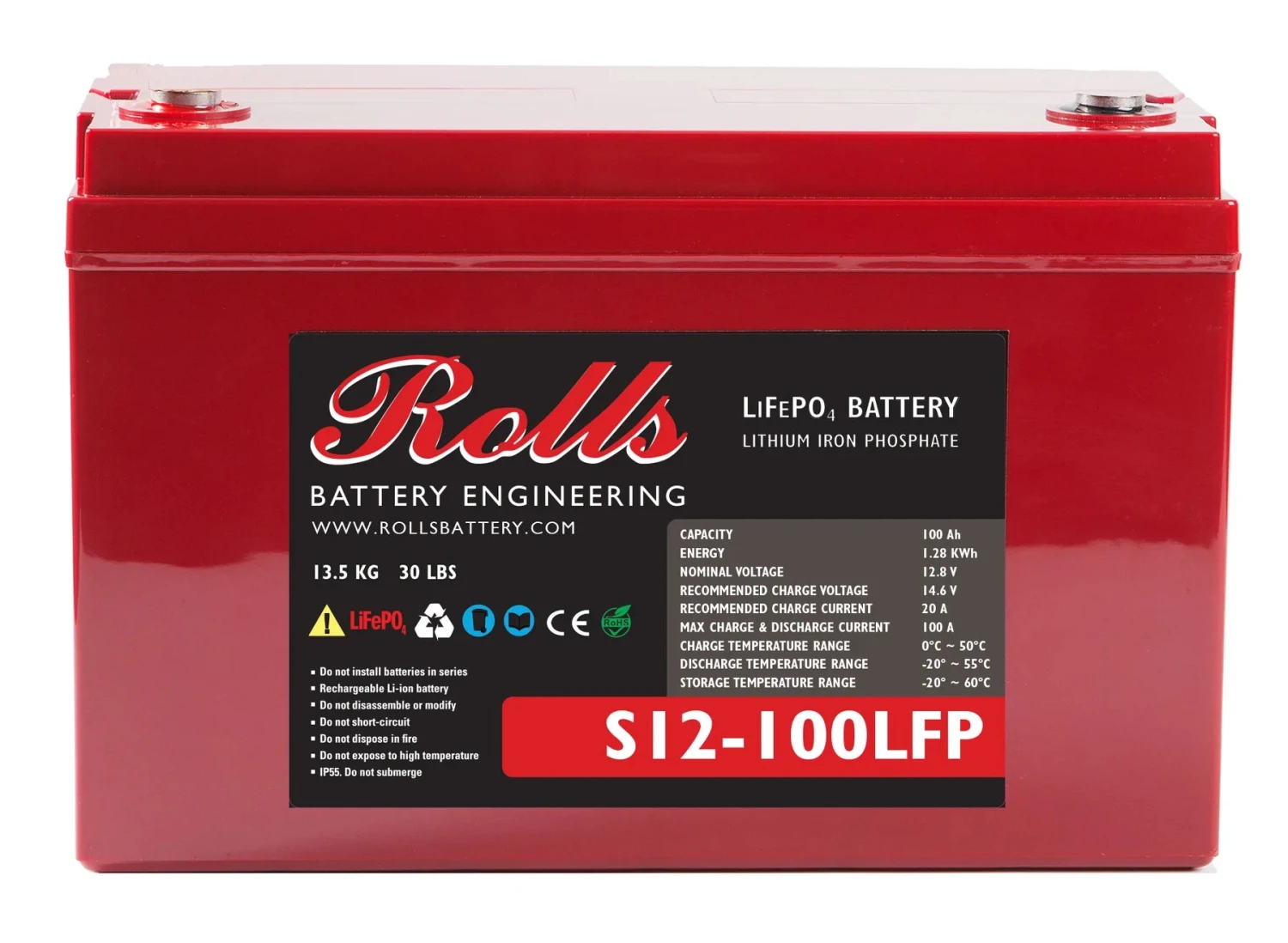

Rolls S12-100LFP 100Ah LiFePO4

There are many LiFePO4 batteries on the market now: Some with inflated performance claims that would make Iron Man jealous. Others which are cheap but completely uncertified from the same fly-by-night brands that disappear once they start to have problems. If you know Rolls Batteries, you know they design batteries that are built to last, and they’ll still be around to help if you have any problems.

Rolls new long-life, high performance Lithium Iron Phosphate LiFePO4 batteries have exceptional cycle life and is up to 50% lighter than equivalent lead-acid battery models.

Highlights

• True LiFePO4 performance
• 12 Volt – 100Ah
• Weight: 30lbs
• Dimensions: 12.99″ x 6.77″ x 8.66″ (WxDxH)
• 36 Month Full Replacement Warranty

Safety

• Prismatic LiFePO4 cells offer longer cycle life & added safety
• IEC62133, UL, UN38.3 cell certification, and CE system certification
• Expected cycle life ~3500 @ 100%DOD

Design

• Standard-size (BCI) ABS container for easy VRLA replacement Fast charge/discharge performance
• -20~ +55°C temperature range
• Maintenance-free
• Parallel Support = 2 Units max (2 x 12v parallel = 200Ah @ 12v)
• Series Support = 4 Units max (4 x 12v series = 100Ah @ 48v)
