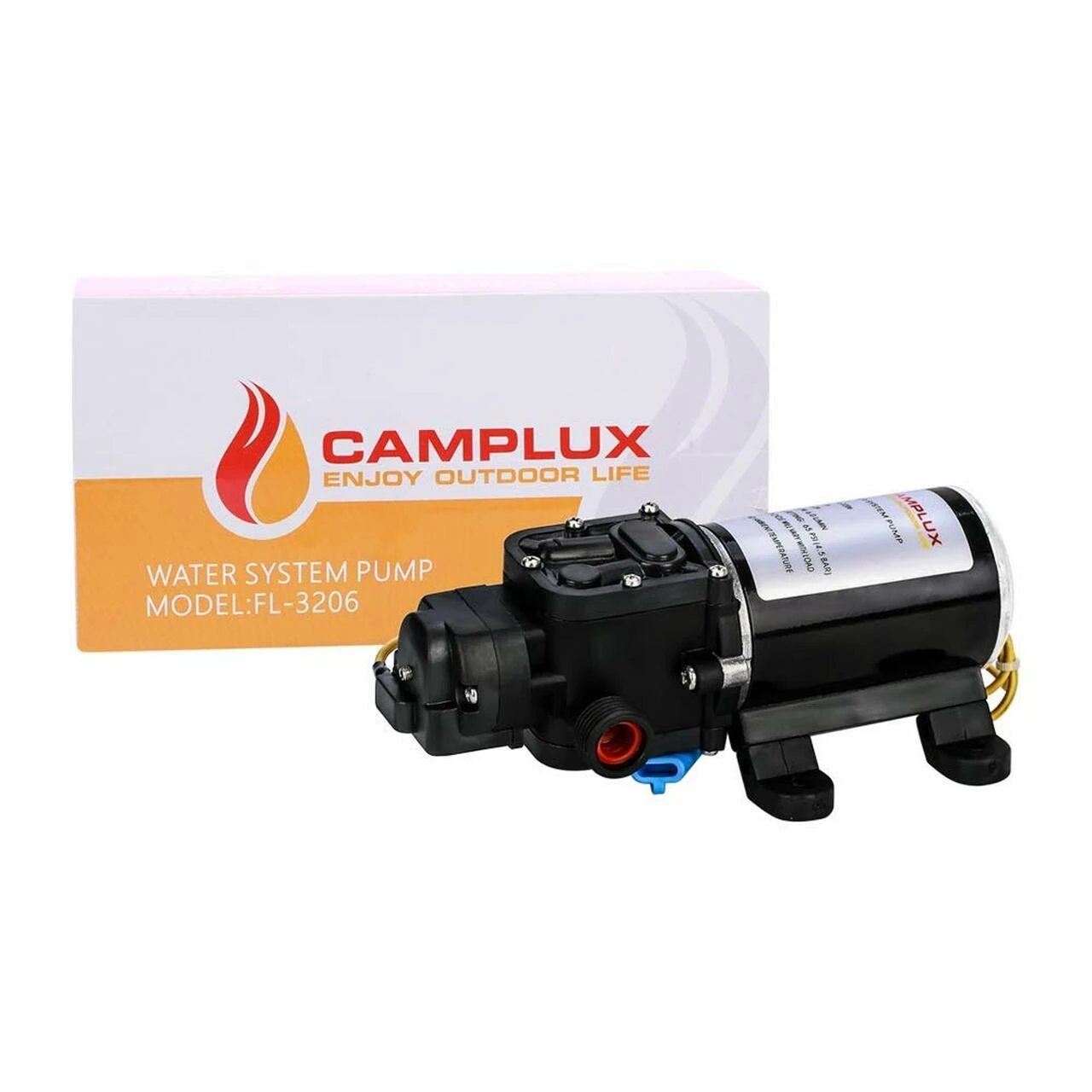

Camplux 12v Diaphragm Pump 1.6GPM 65PSI

This little self-priming 12v diaphragm pressure pump is ideal for use in any area that requires water transfer. Allows for automatic pressurized water for RV’s, boats, and camping while doing dishes, taking showers, and other light duty purposes. The rubber mounting feet provide good vibration isolation. Compact and light weight, this pump is easy to install with a long lifespan.

Note: this is a small pump but very capable. If your application requires more than 1.6GPM or you are using more than 1 faucet at a time, a larger pump is strongly recommended. This pump has built-in thermal protection and will shut off when hot (usually after 60 minutes of continuous operation). It will restart 15-20 minutes later after cooling down.

Specifications

• Model: JK-3206
• Voltage: 12V
• AMPS: 6.0A max

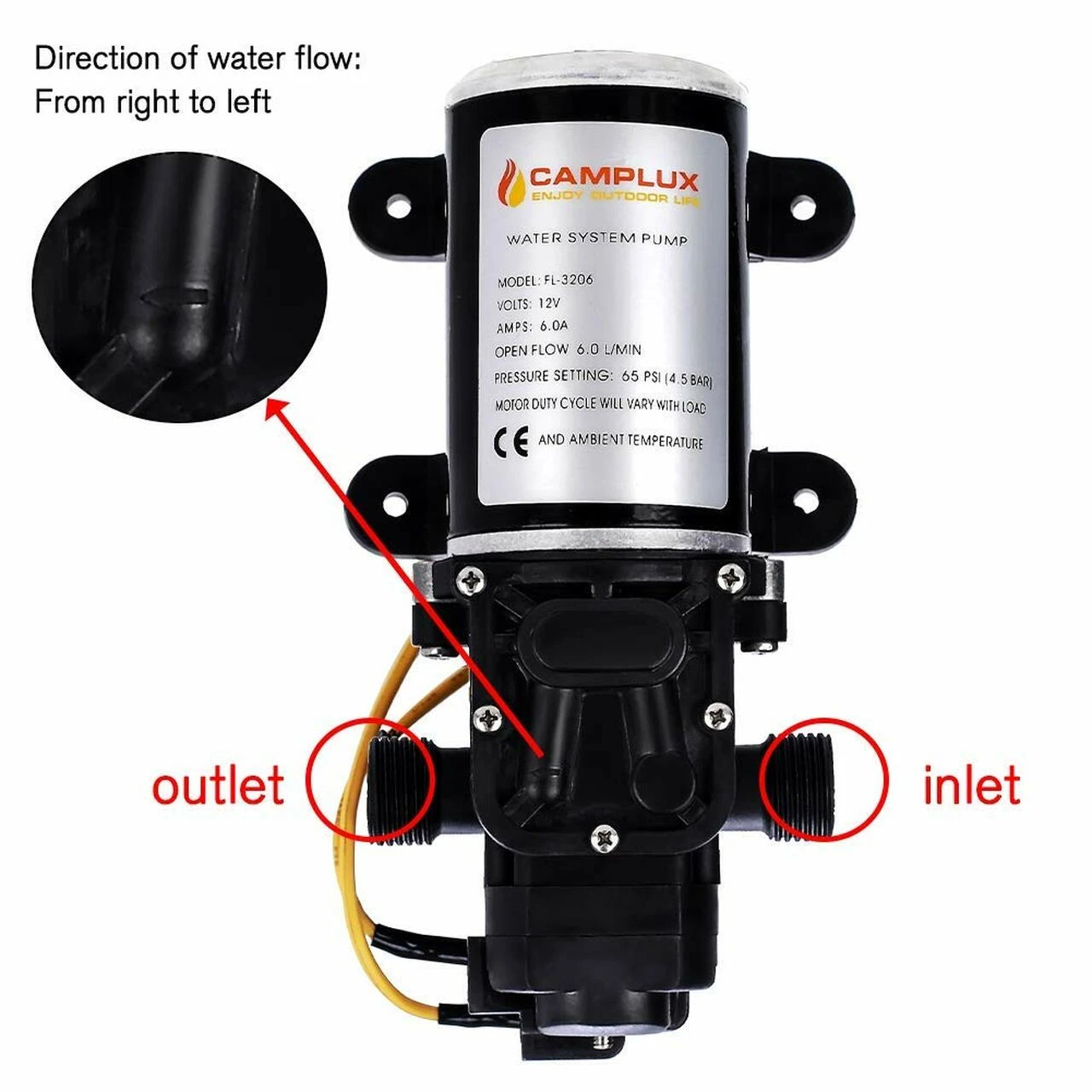

• Standard ½” NPT connections (fittings sold separately)
• DC Flow capacity: 1.6 GPM/6.0LPM
• Water pressure: 65PSI

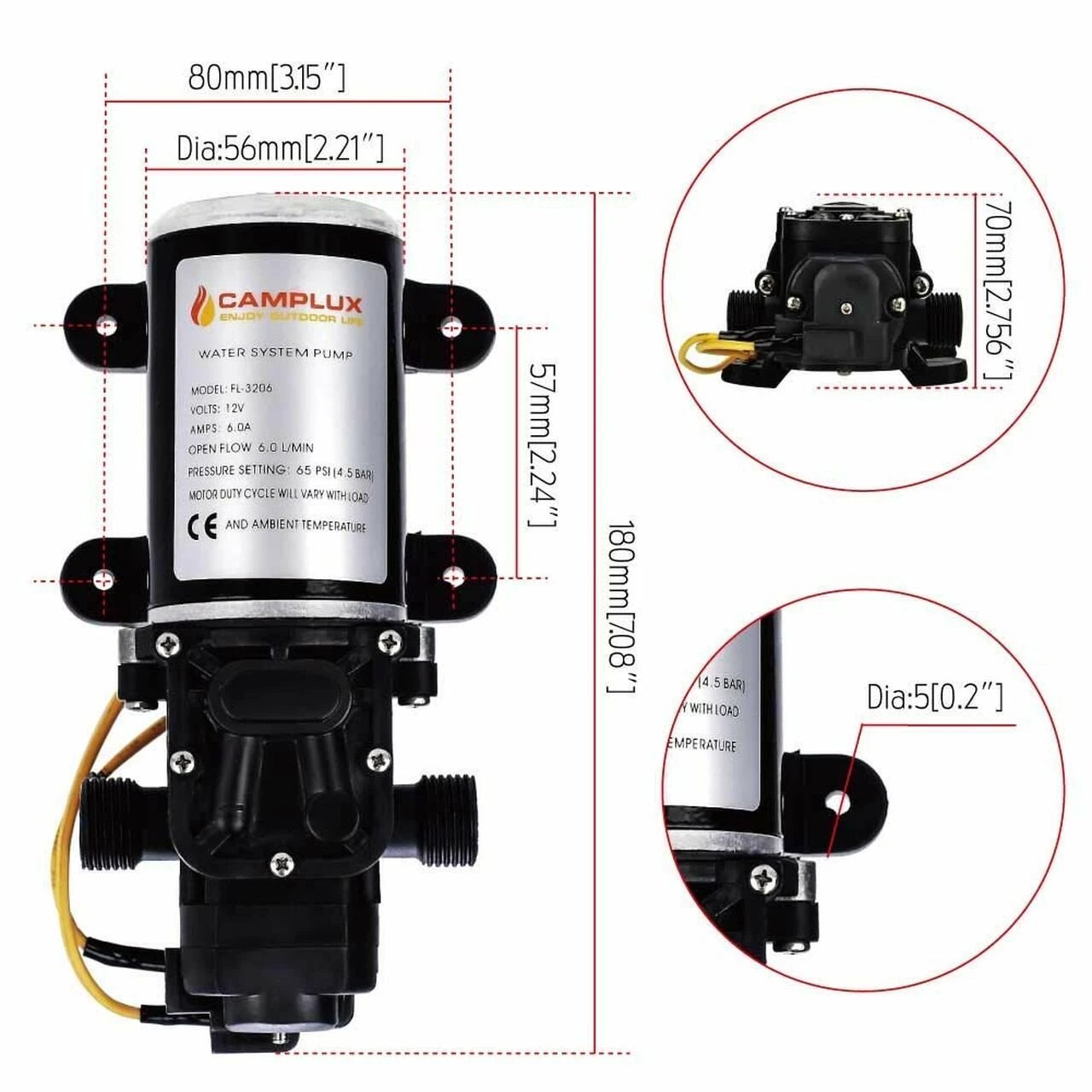

• Item size: 7.4 x 3.9 inch

What’s in the Box

• 1 x Diaphragm pump
• 1 x Installation instruction booklet

Fitting options
