Cinderella® Freedom Bundle W/ Urinal

The COMPLETE Cinderella Freedom Incinerating Toilet bundle!

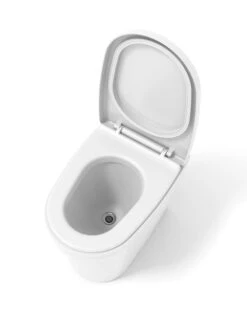

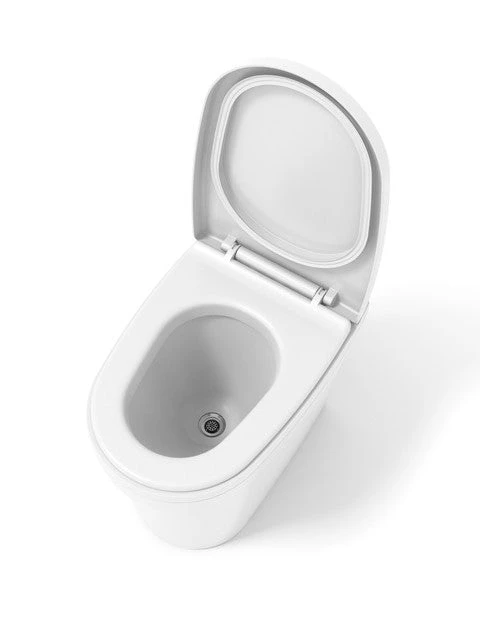

This special bundle includes the new Cinderella Urinal which will significantly reduce the amount of incineration cycles that your Cinderella Freedom would otherwise require to evaporate urine only, saving you propane and wear & tear on your Cinderella Freedom toilet.

Included in this bundle:

• Cinderella
• Cinderella
• Cinderella

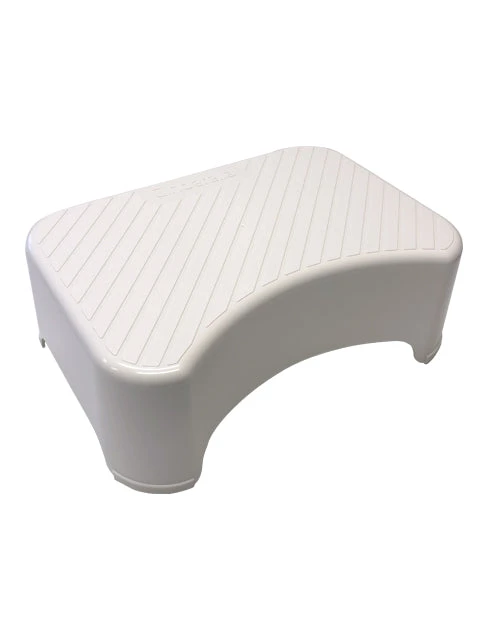

• Cinderella Foot Rest
• Cinderella

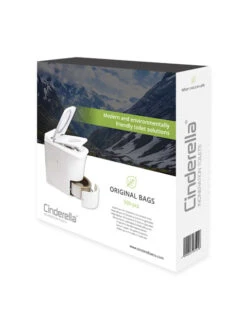

• Cinderella (600 bags total)
• Cinderella
• Cinderella
• Cinderella

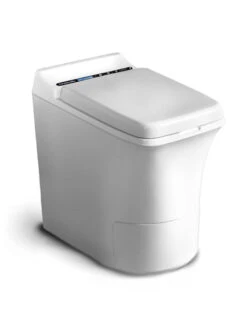

About the Cinderella Freedom

Designed and manufactured in Norway for over 25 years, Cinderella is the only UL and NSF certified gas toilet in North America. Cinderella – like us here at The Cabin Depot™ – are a family-owned company that is environmentally conscious and dependable. Emissions tests are so low on these units, they are considered non-pollutant.

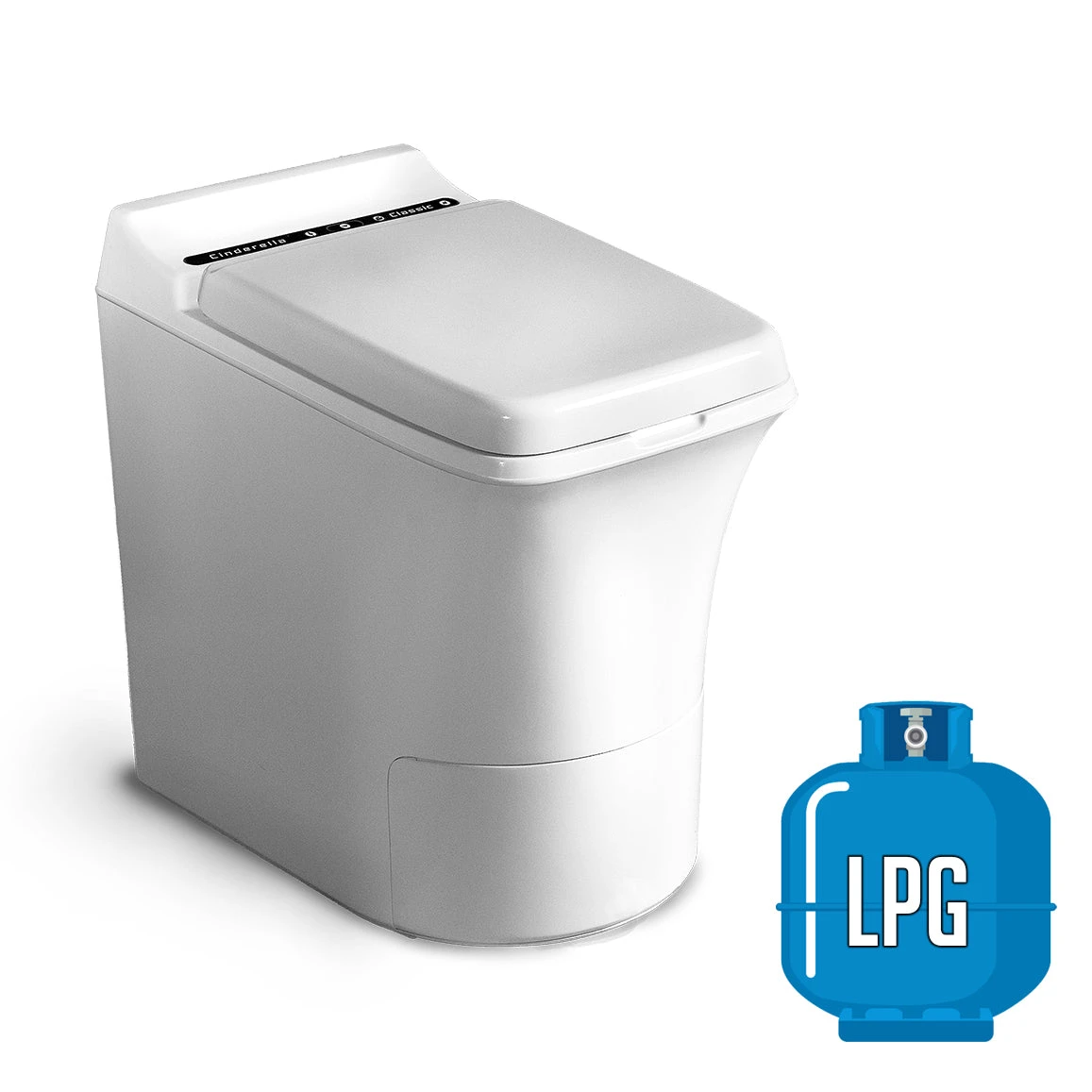

The Cinderella Freedom uses propane gas as an energy source to conduct the incineration process – making it perfect for off-grid applications! The fuel consumption on average is 0.45 lb/hr (0.2 kg/hr) or up to 180 grams per use and the power consumption is around 1.3A per incineration. Most customers average 75 flushes per 20lb tank. This unit runs at 9260 BTU/Hr and requires a connection to a 12v 10A(minimum) DC power supply to operate the control board, display screen and fans. There are few different ways to power your unit; please see examples below:

• Our most popular option is the
• 12v AGM or flooded deep cycle battery
• 12v LiFePO4 battery
• The house/home 12v battery bank directly
• A portable battery pack with 12v output
• 12v Step down converter if connected to a larger voltage battery bank (ie: 48v>12v or 24v>12v)
• 120vAC to 12vDC adapter – we typically recommend the or

Included:

• Freedom incineration toilet
• User manual and Installation manuals
• 100 x Cinderella Original Bowl Liners
• 1 x Fresh Air Intake Valve
• 1 x Chimney Cap

Easy To Use

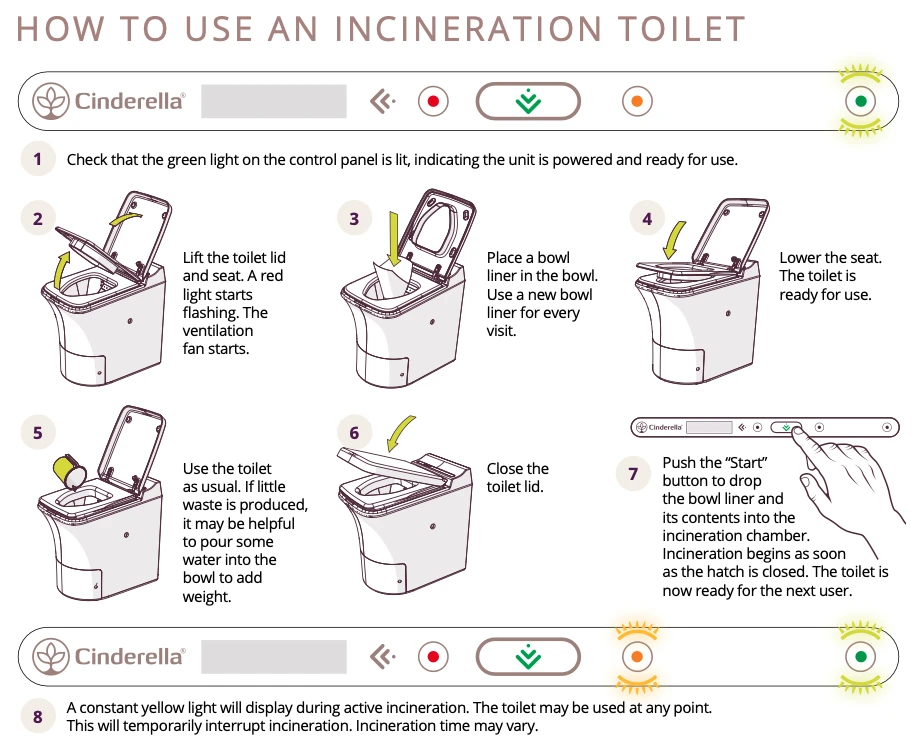

Cinderella incineration toilets are easy to use, and the Cinderella bowl liners safely transport the waste to the incineration chamber. This keeps the toilet hygienic and clean, compared to other options available on the market. Simply lift the lid and seat ring. Place an original Cinderella bowl liner in the bowl and put the seat back down. Use the toilet as you would any toilet and close the lid when you are done. Press the “flush button” and the bowl liner, with its contents, is released into the incineration chamber below. The toilet is now ready for use and the process as described can be repeated.

Installation

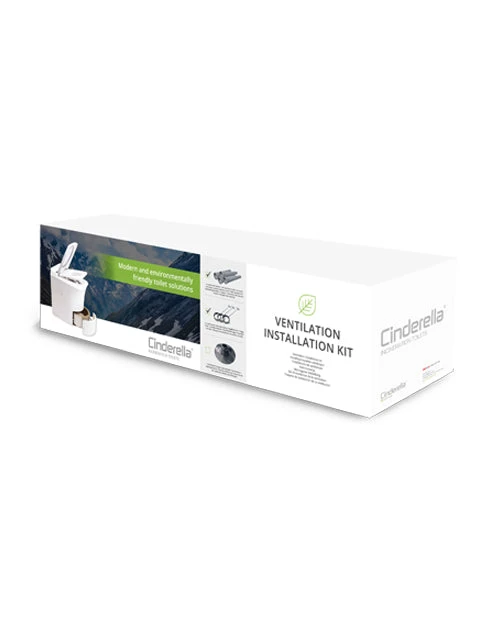

The most important prerequisite for a well-functioning toilet is correct installation. We always recommend the gas supply be connected and tested by a specialist in accordance with your local codes and regulations. Since the unit is propane fuelled, it is required to be vented using UL-S636 pipes. This bundle comes with 4″x 36″ UL-S636 pipes (5), 5 x connector rings, 3 x wall mounts with 4 x pipe clamps and ball valve syphon for condensate drainage from the included male/ female 87º elbow with condensate drain.

Features:

• Perfect for areas where gas is preferred or where no mains power is available
• Requires 12V DC, propane gas supply, and inlet/outlet air
• A high quality product made in Norway
• Easy to use
• Informative LCD display with 7 languages

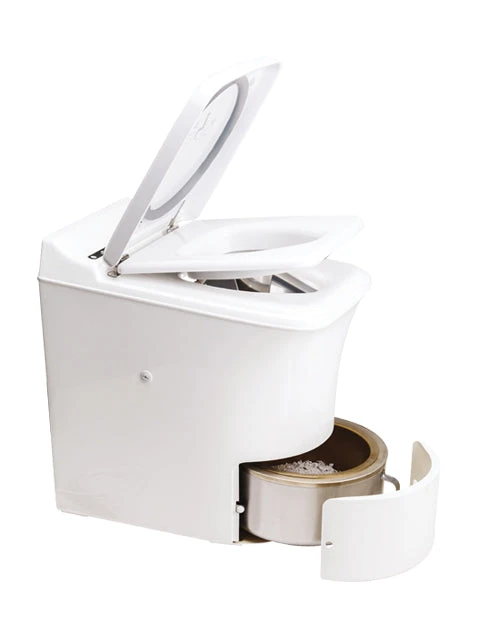

• Simple emptying of ash container
• A total waste solution, no after-handling
• Capacity: 3-4 visits per hour
• No water supply or installation of indoor / outdoor tank required
• Reliable operation
• No odors
• 3-year warranty

Specifications:

• Height: 23 5 ⁄ 8 in. (600 mm)
• Seat height: 21 1 ⁄ 4 in. (540 mm)
• Width: 15 3 ⁄ 8 in. (390 mm)
• Depth: 23 1 ⁄ 4 in. (590 mm)
• Weight: 75 lbs. (34 kg)
• Capacity: 4 visits per hour
• Standby Power Consumption: 0.005 Amp
• Power consumption (incineration): 1.3 Amp
• Gas consumption: Most customers average 75 flushes per 20lb tank
• Gas: Propane (20-50 mbar / 8-20″ W.C)
• Electrical power supply: 12V DC / 10 Amp (11–14.4V)
• Maximum burner effect: 9260 BTU/hr (2.87 kW)

Downloads

• Cinderella Freedom Product Manual
