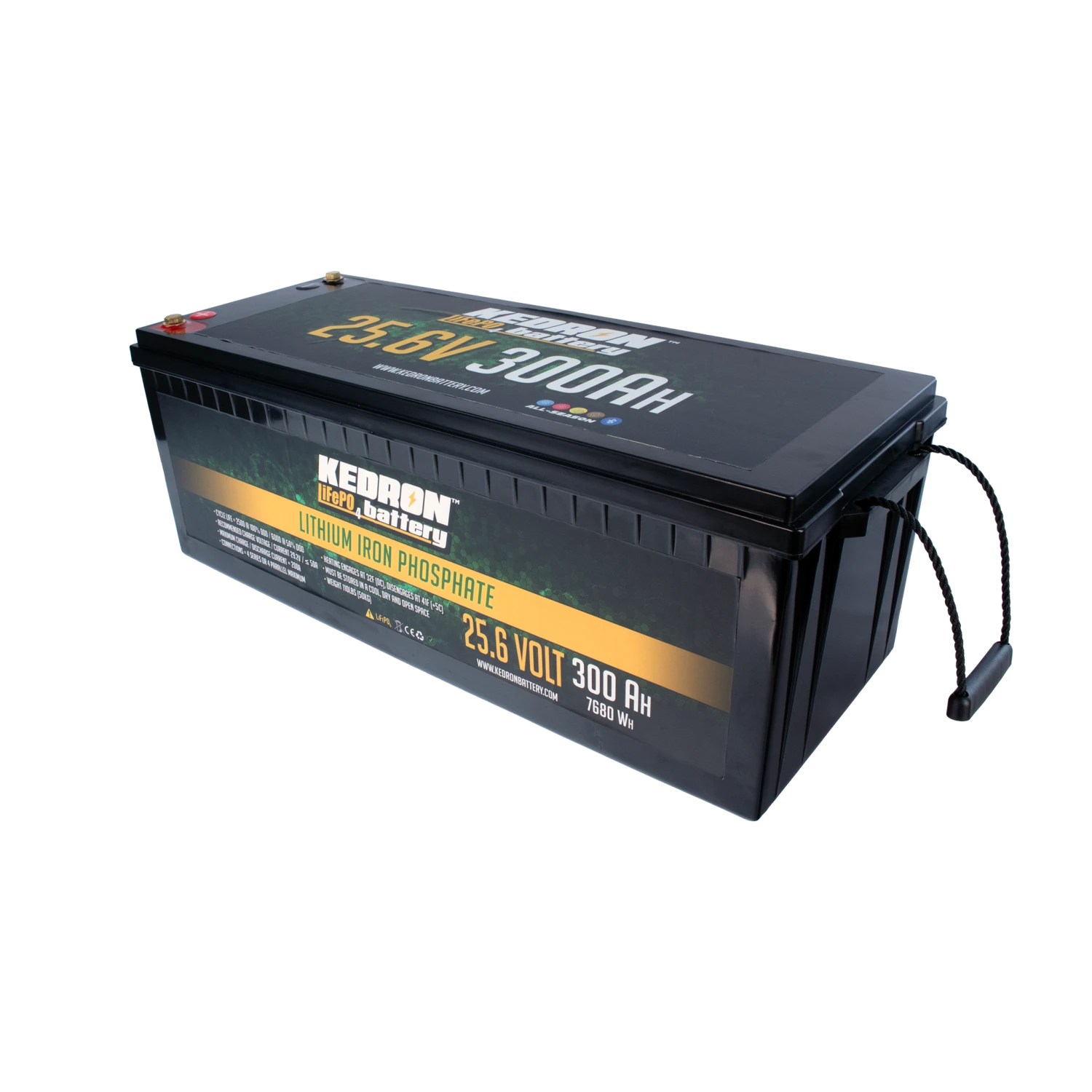

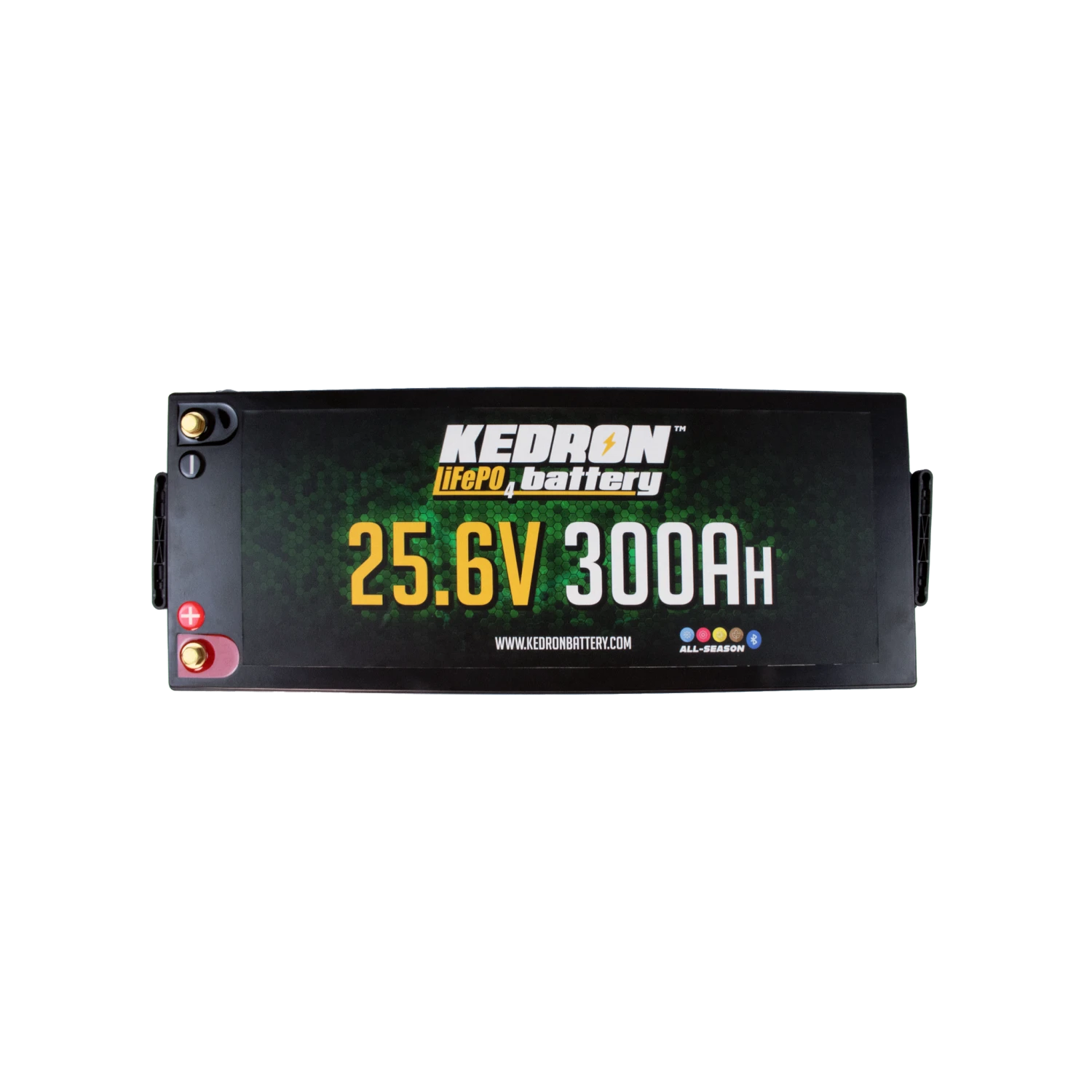

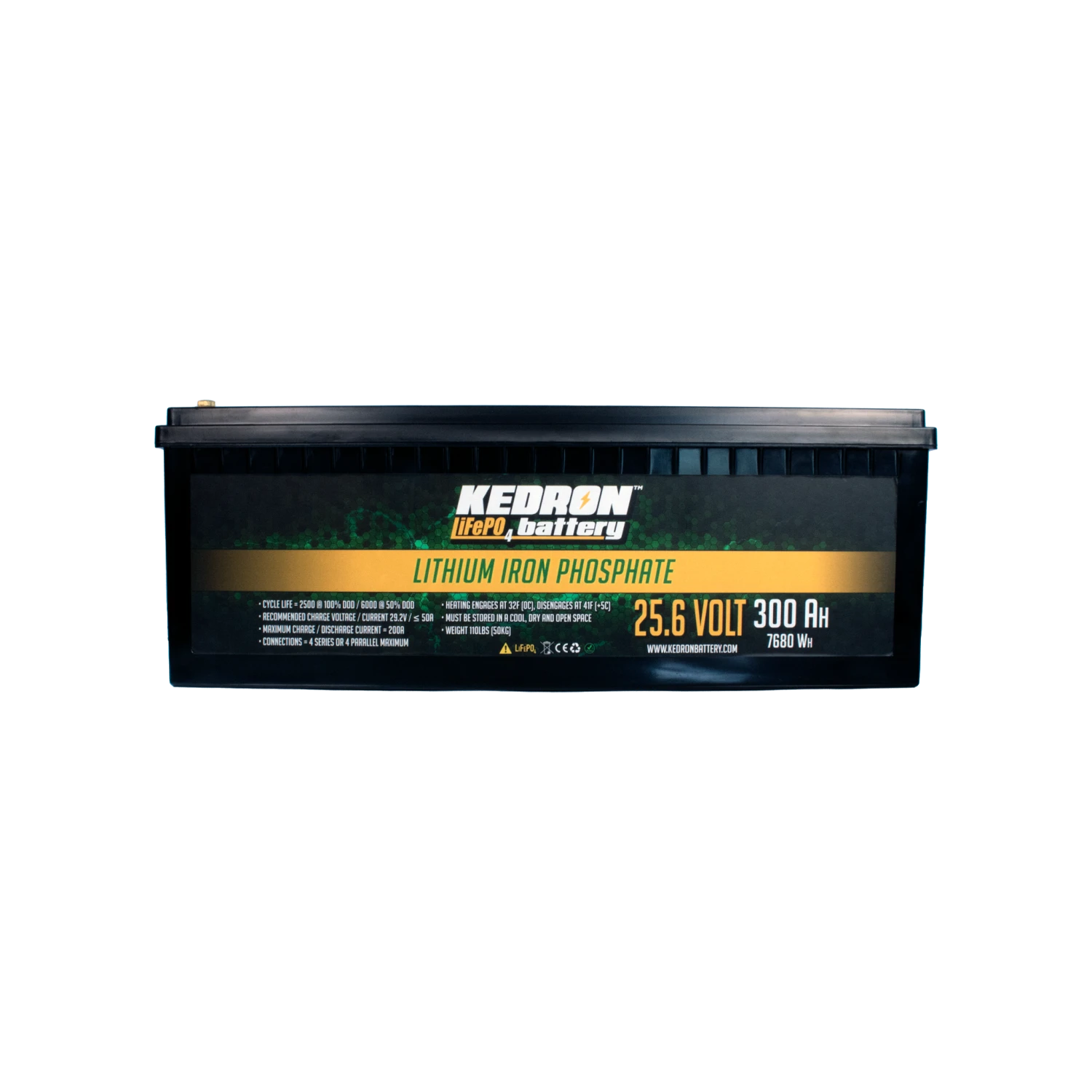

Kedron 24v LiFePO4 300AH

Kedron 24v LiFePO4 300AH

 (Canada only, remote locations excluded)

Welcome to the newest addition to the Kedron Battery™ family: Kedron LiFePO4.

With exceptional cycle life, our new Lithium Iron Phosphate batteries weigh about 50% less vs equivalent lead-acid battery models, and more importantly, can handle prolonged storage below 50% SOC and deep cycling without damage: No sulfation. No stratification. Less worries.

Highlights

• Higher usable capacity & true LiFePO4 performance
• 24 Volt – 300Ah / 7680Wh capacity
• Extreme cold weather operating capability
• Weight: 110lbs (50kg)
• Dimensions WxDxH: 19-5/8″ x 9-1/2″ x 9″ (499mm x 241mm x 229mm) including terminal
• 60 Month Limited Warranty (36mo LiFePO4 cells + additional 24mo for BMS)

Safety

• Integrated battery management system (BMS) for safe charging & discharging

• UN3480 compliant, UN38.3 cell certification, and CE system certification
• Expected cycle life ~2500 @ 100% DOD / ~6000 @ 50% DOD

Design

• Fast charge & discharge performance
• Cold weather operating system allows for uninterrupted wintertime use
• Recommended charge voltage / current = 29.2V / <50A
• Maximum charge / discharge current = 200A
• Updated design: charge & discharge in cold temperatures!
• Normal operating temperature range: -22F to 140F (-30C to +60C)
• Maintenance-free
• Parallel Support = 4 Units max (4 x 24v parallel = 1200Ah @ 24v)
• Series Support = 2 Units max (2 x 24v series = 300Ah @ 48v)

For additional installation specifics & warranty requirements, please see our information page .
