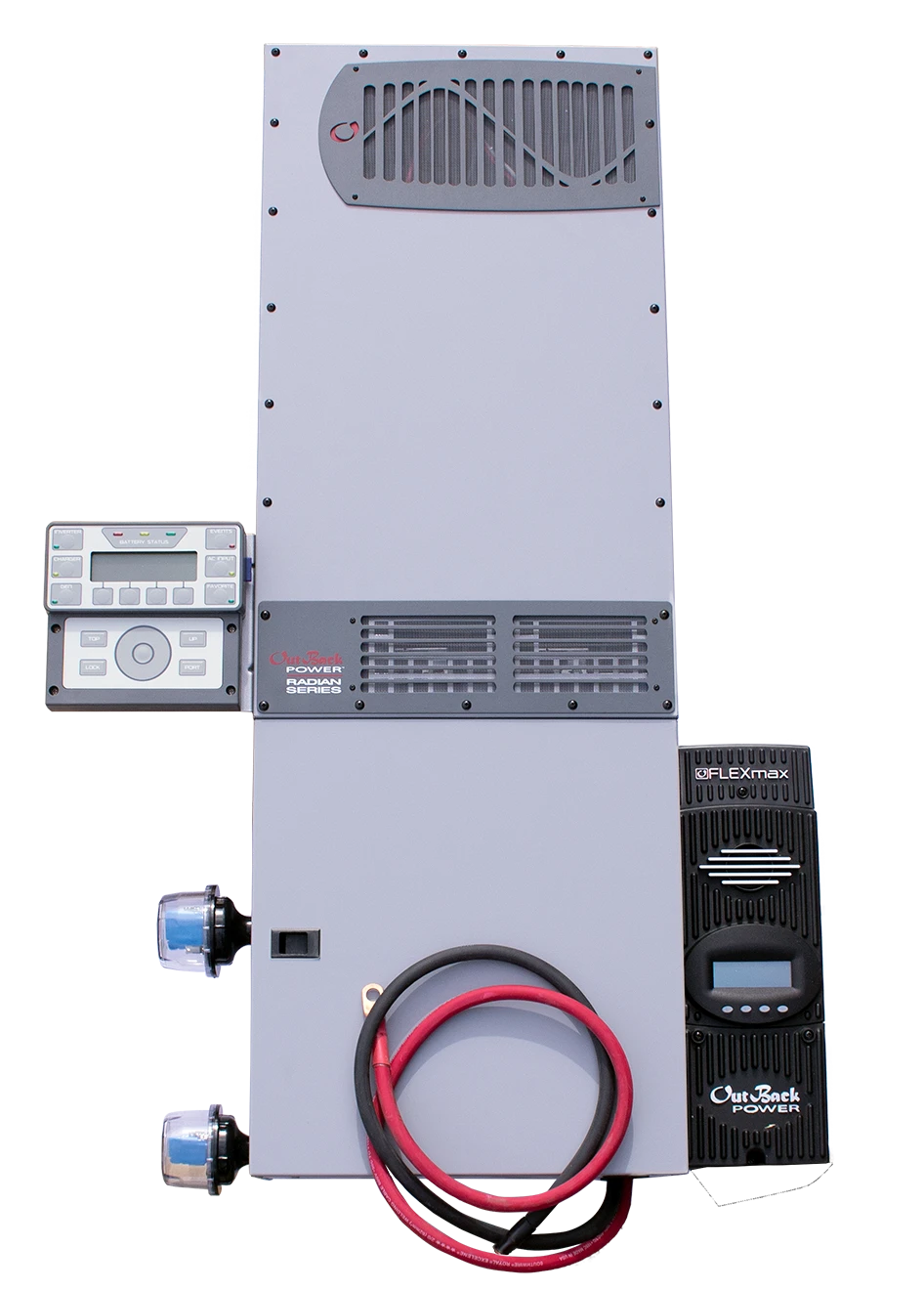

Outback 8000 Watt FLEXpower Radian Pre-Wired System

Only 1 Left In Stock

OutBack’s pre-assembled and pre-wired power systems take the concept of fast, easy installation to a new level of performance, value and flexibility with the FLEXpower Radian™.

This Cabin Depot Pre-Wire Exclusive Includes the following:

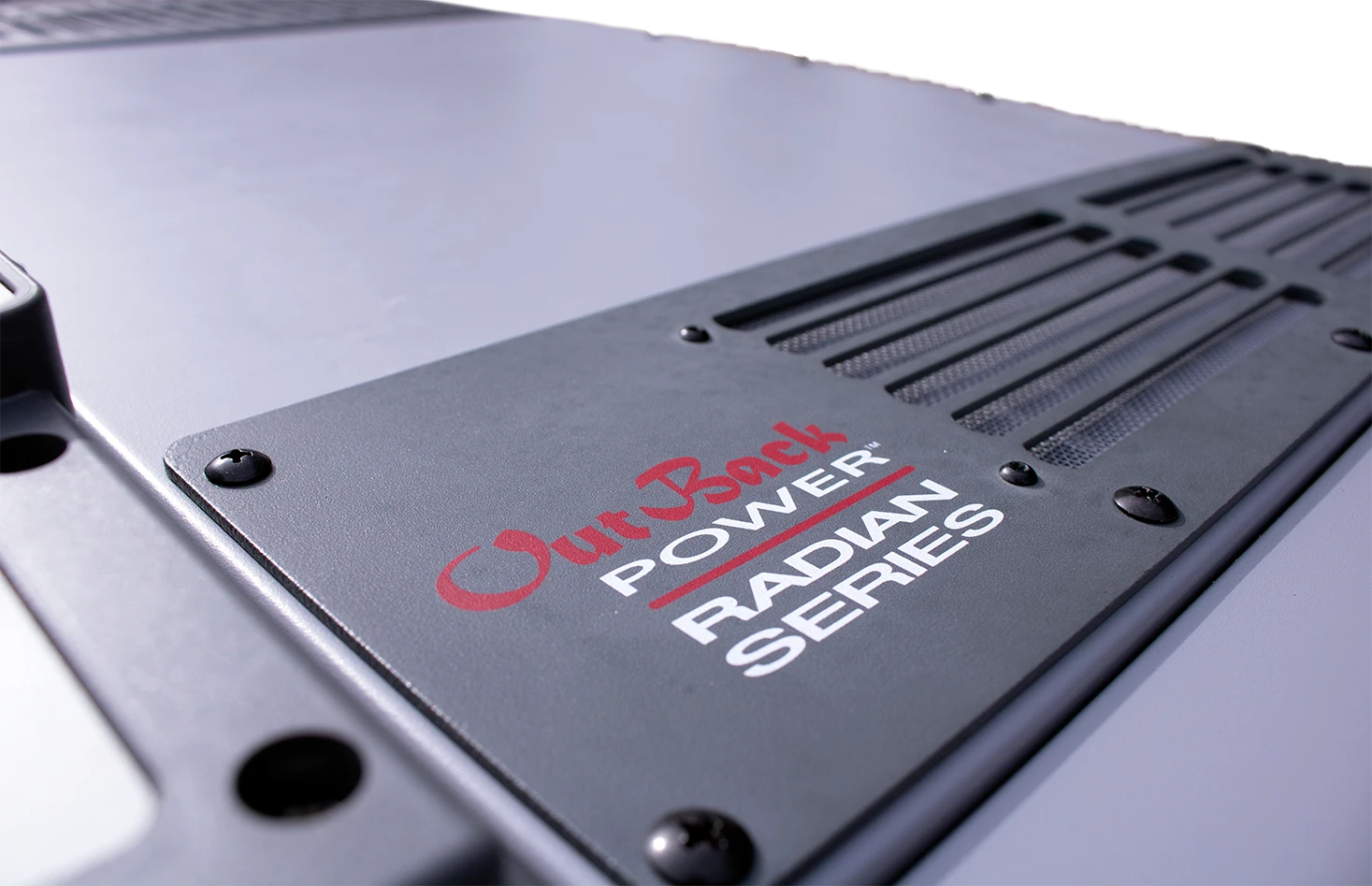

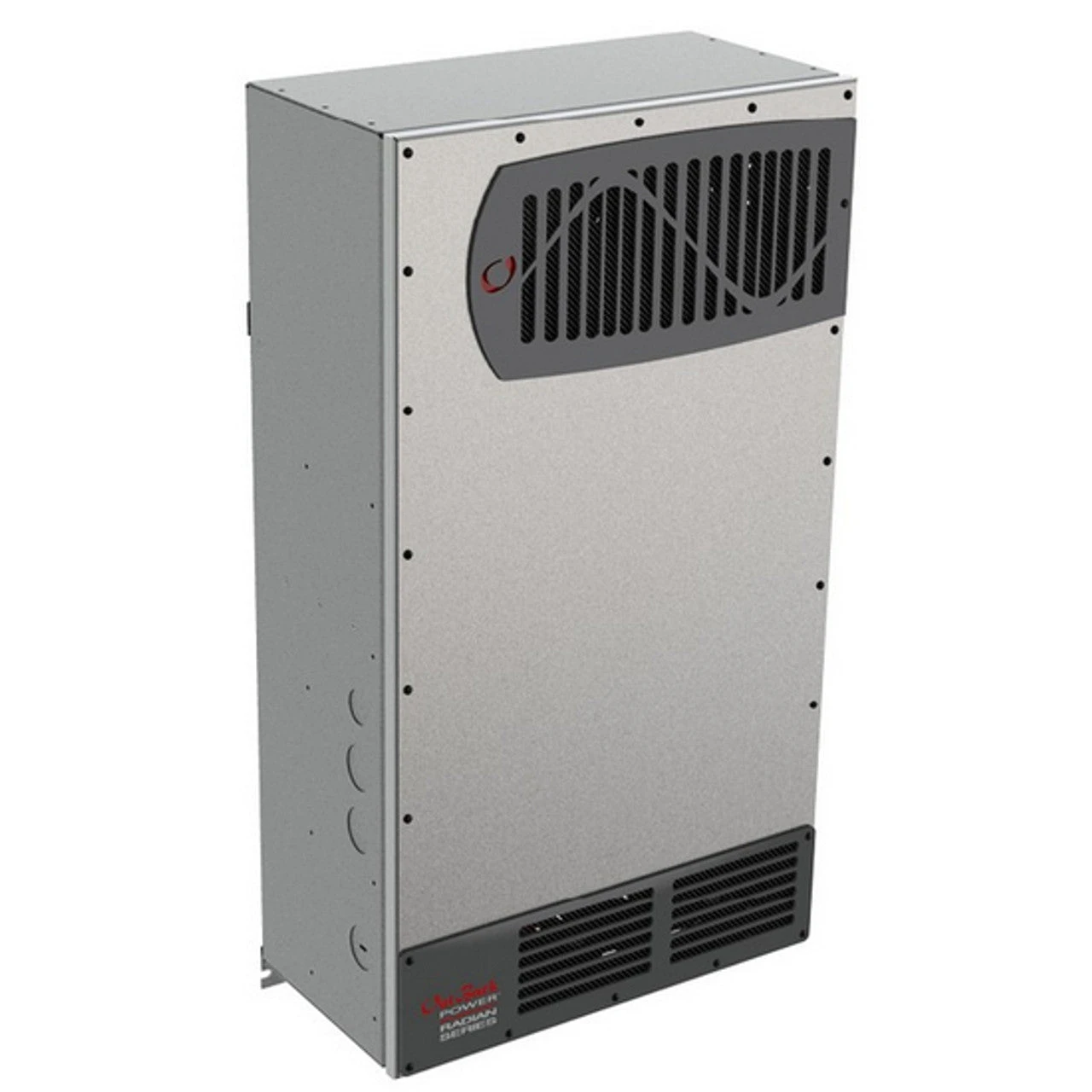

OutBack Power GS8048A-01 Radian Series Inverter 8kW

Product Highlights

NEW Frequency shifting AC coupling

CSIP certified with OutBack Power’s CSIP bridge

Grid-interactive and stand-alone capability in the same package

Unsurpassed surge capacity

Dual AC inputs

Field serviceable modular design

GSLC load centre option allows for quick and easy installation

The Radian™ Series Grid/Hybrid™ (full-flexibility grid-interactive/off-grid) Inverter/Charger is engineered toward one goal: making system design and installation easier and faster in grid-interactive and comprehensive off-grid applications. The new Radian Series inherit the hallmark features of the original design, including: dual AC inputs for grid/generator flexibility with no external switching required, unparalleled surge capability and operational stability, easy field upgradeability. Additionally, the use of a MATE3s brings stacking capability for large system scaling, simplified system commissioning through a powerful, easy-to-use configuration wizard, and multi-mode operational flexibility.

In addition, both models have a new Advanced Battery Charging (ABC) profile option to support leading-edge battery technologies such as Lithium-Ion and others, and enhanced diagnostics for improved performance. And both incorporate OutBack’s GridZero technology, a superior level of intelligence in energy management for self-generation and self-consumption programs, providing precise balancing between using stored energy, solar and utility power, blending-in the latter to overcome surges and load spikes when needed. GridZero operation makes it possible for a smaller inverter and battery system to perform like a much larger one when required, putting stored and renewable energy sources to work and minimizing grid dependence. GridZero technology make the new Radians ideal for use in complex utility environments such as California and Hawaii.

The GS8048A are certified to UL1741 for US applications, and CSA C22.2 No. 107.1 for Canada, and is IEC 62109-1 certified to meet the most stringent worldwide PV safety and emission standards.

Datasheets:

Manual Downloads:



Warranty and Other Downloads:

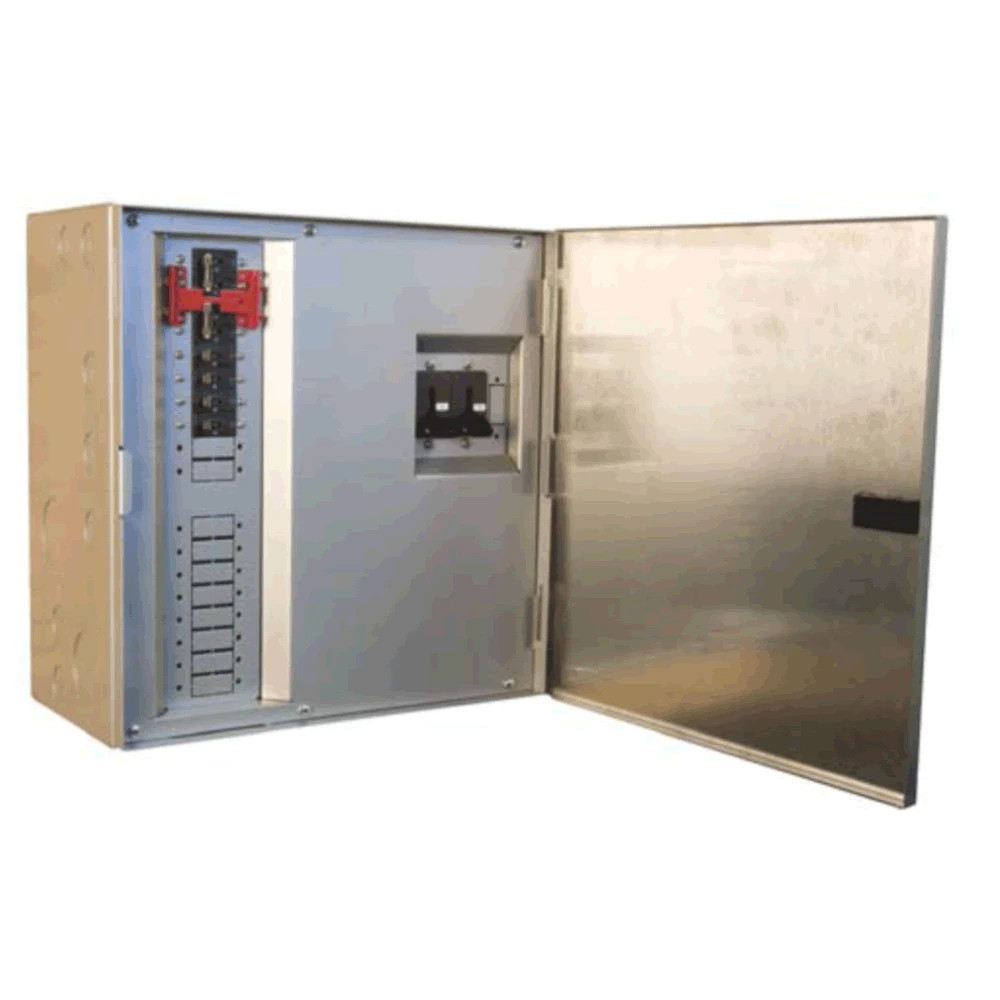

Radian™ Series GS Load Center

Product Highlights

Pre-wired or customized options for quick and easy installation

Dual AC inputs and DC connections

120/240VAC and 230VAC designs

UL 1741 end-to-end

Greater dynamic stability

Dual AC inputs

Fully integrated from industry leading brand



OutBack Power’s Radian™ GS Load Centers are an integrated connection enclosure series for AC and DC system connections in OutBack Radian Series inverter/charger applications, through provided inverter DC overcurrent protection and disconnects, dual AC inputs, grid-tie inverter connection and 120/240VAC or 230V maintenance bypass.

Designed for use with the Radian Series inverter/charger family, the options offer solutions for ground-up custom designs or factory pre-wired configurations for specific applications.

The OutBack GS Load Centers simplify the configuration, distribution, and implementation of energy storage of the Radian Series inverter/charger through a standardized approach.

Datasheet:

Manual Downloads:

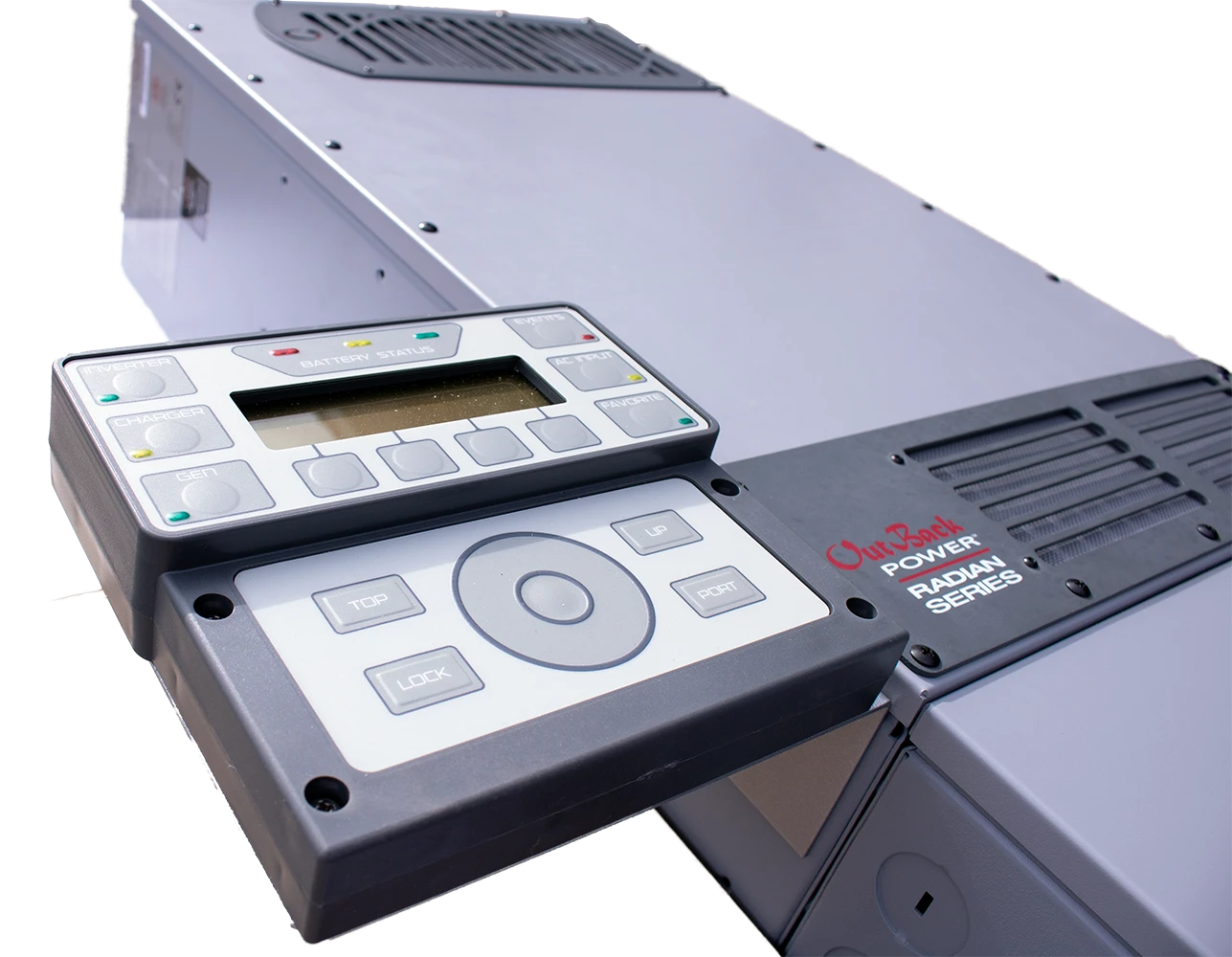

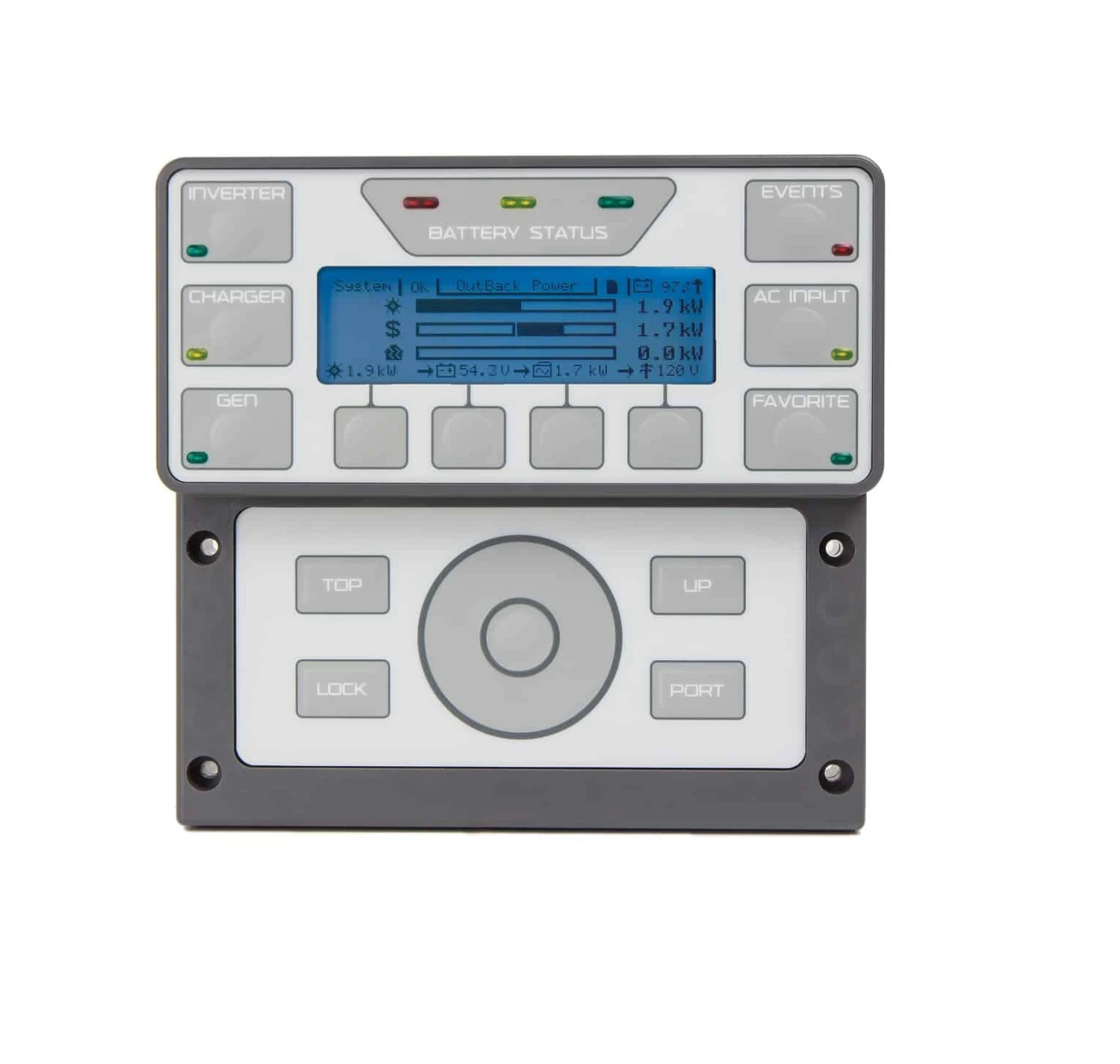

MATE3S – System Display & Controller

Product Highlights

Program, manage and monitor entire system

Intuitive menu structure

Easy-to-read graphical display

System configuration wizard

Internet-enabled (MATE3s only)

Field upgradable

Up to 1-year of data logging

SD memory card slot

Mounting Bracket Included



Designed for UL 1741 SA compliance, the MATE3s System Display and Controller makes it easier than ever to program and monitor a complete OutBack Power system. The MATE3s keeps the same intuitive user interface and integrated system configuration wizard found in the MATE3 to make system setup and programming quick and seamless. The ability to set unique multi-level user passwords makes it possible to secure critical system settings from unintended changes while still allowing open access to necessary functions. The MATE3s can also connect to the OPTICS RE servers for remote monitoring and control.

Datasheet & Manual:

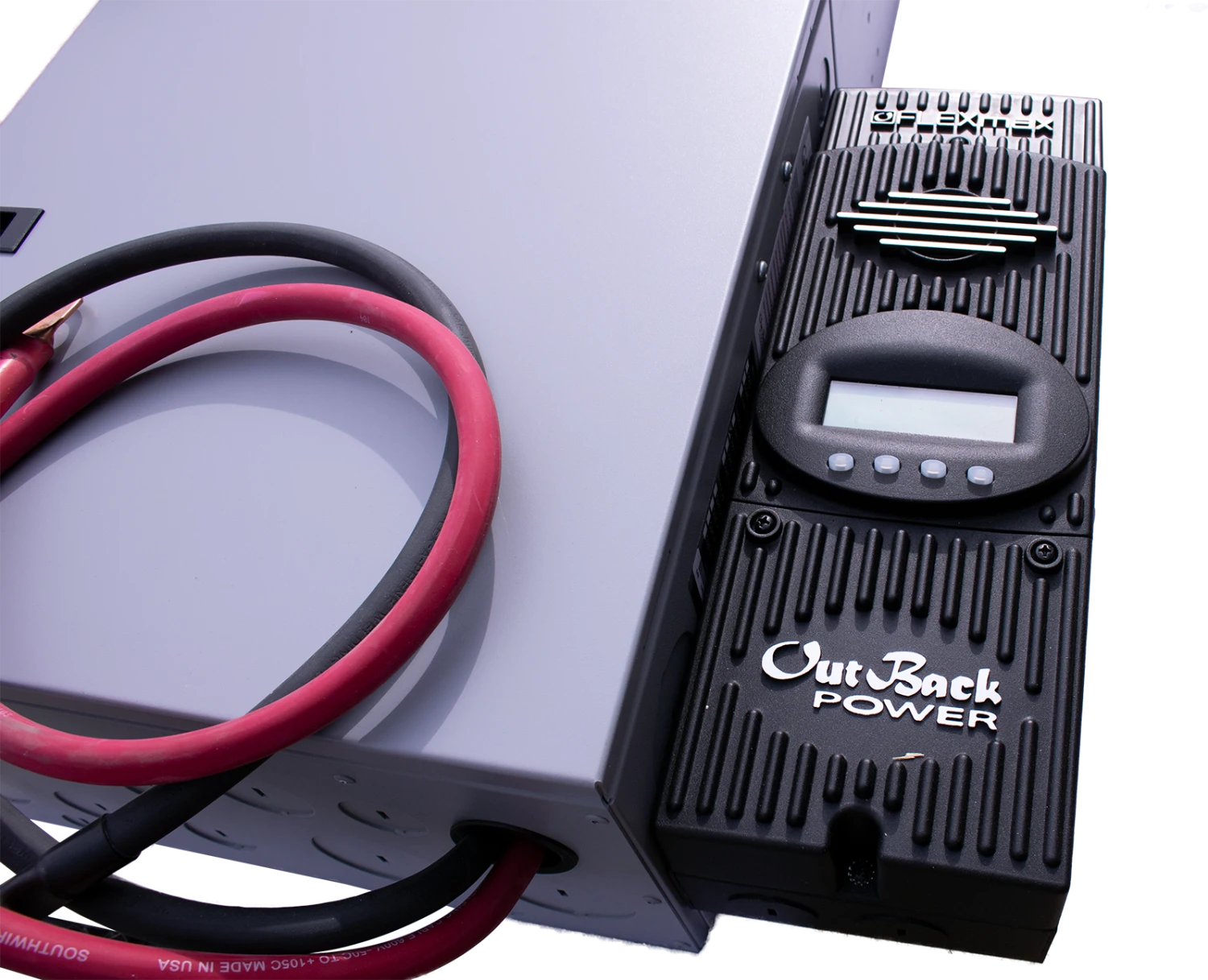

FLEXmax 80 Charge Controller

Product Highlights

Maximum Power Point Tracking (MPPT)

Active cooling and intelligent thermal management cooling

Ambient temperatures as high as 104°F (40°C)

Built-in, backlit 80 character display

Integrated OutBack network communications



The FLEXmax family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from OutBack Power. The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both FLEXmax charge controllers can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in ambient temperatures as high as 104°F (40°C).

Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by OutBack Power, including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button. The integrated OutBack network communications allows FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled complete system integration.

FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance, efficient and versatile charge controller for your advanced power system.

Datasheet:

Manual:

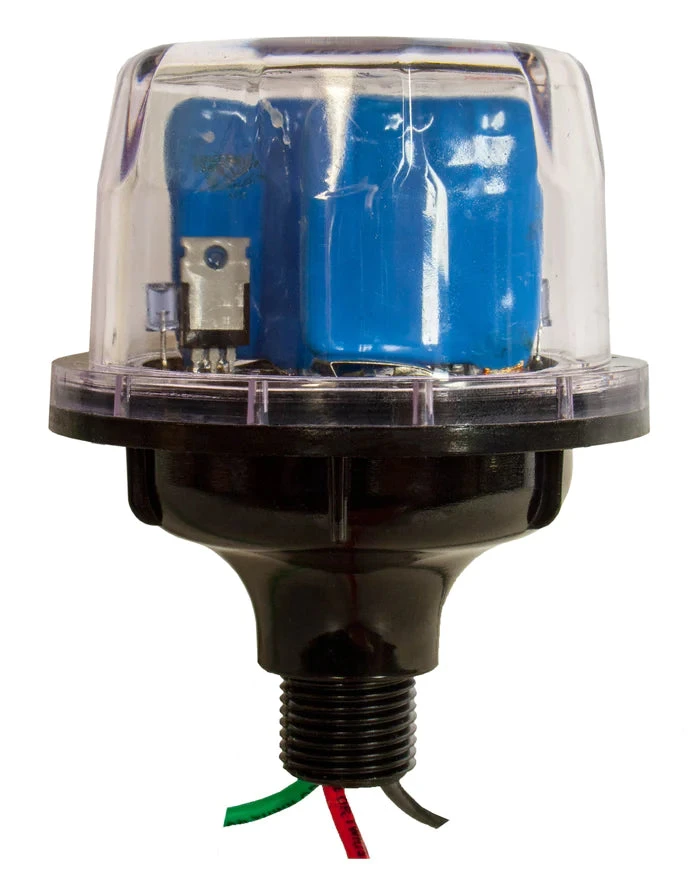

Midnite MNSPD-300-AC Surge Protection Device

MNSPD-300-AC (AC MODEL)

The MidNite Solar Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3. It is designed for both AC and DC systems and provides protection to service panels, load centers or where the SPD is directly connected to the electronic device requiring protection.

The DC SPD will work well on all DC circuits up to 300 volts as well as any 120/240 VAC circuits. The difference between the AC and DC SPD is the way the LED’s are powered. The protection side of things is identical.

Specifications

• Environmental Rating – Type 4X (Outdoor)
• Warranty – 5 yrs.
• Listed by ETL for US & Canada
• Made in the USA

Download:



Midnite MNSPD-300-DC Surge Protection Device

MNSPD-300-DC (DC MODEL)

The MidNite Solar Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3. It is designed for both AC and DC systems and provides protection to service panels, load centers or where the SPD is directly connected to the electronic device requiring protection.

The DC SPD will work well on all DC circuits up to 300 volts as well as any 120/240 VAC circuits. The difference between the AC and DC SPD is the way the LED’s are powered. The protection side of things is identical.

Specifications

• Environmental Rating – Type 4X (Outdoor)
• Warranty – 5 yrs.
• Listed by ETL for US & Canada
• Made in the USA

Download:
