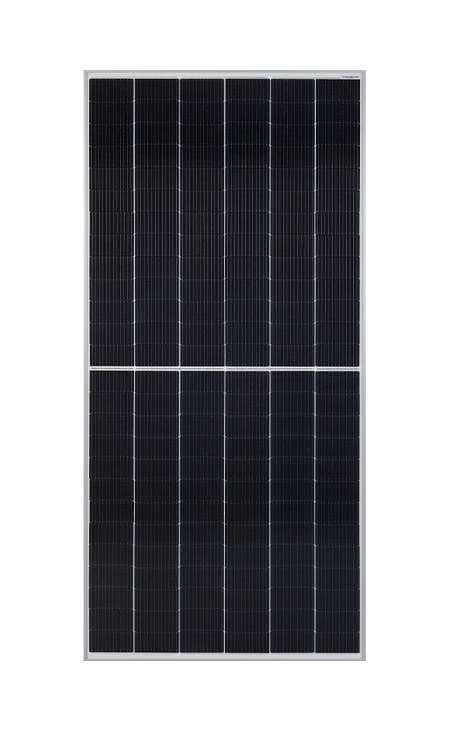

Q Cells – 480 Watt Q.Peak Duo XL-G10.3 78 Cell Solar Panels

Quantity Discounts Available.

Engineered in Germany

Shipping fees are calculated at checkout.

Additional shipping fees may apply for some orders depending on location.

For customers located within Yukon, Northwest Territories or Nunavut please call 1-844-603-4743, or email quotes@thecabindepot.com to submit a request for a shipping quote.

The Cabin Depot is very proud to be partners with QCells, one of the most renowned and award winning Solar Panel manufacturers globally.

Why QCells? Here’s why!!

BREAKING THE 21% EFFICIENCY BARRIER

Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 21.6%.

LOW ELECTRICITY GENERATION COSTS

Higher yield per surface area, lower BOS costs and up to 80 watts more module power than standard 144 half-cell modules.

ENDURING HIGH PERFORMANCE

Long-term yield security with Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™.

EXTREME WEATHER RATING

High-tech aluminium alloy frame, certified for high snow (5400Pa) and wind loads (2400Pa).

A RELIABLE INVESTMENT

Inclusive 12-year product warranty and 25-year linear performance warranty.

STATE OF THE ART MODULE TECHNOLOGY

Q.ANTUM DUO combines cutting edge cell separation and innovative 12-busbar design with Q.ANTUM Technology.

 The high-performance module Q.Peak Duo XL-G10.3 is the ideal solution for residential, commercial or utility applications thanks to a combination of its innovative Q.ANTUM DUO Z technology and its cutting edge cell interconnection. This 1500 UL/IEC Solar module ensures superior yields with up to 480 watt power while yielding very low LCOE. (Levelized Cost of Electricity)

Nominal Power – 480 Watts

Efficiency – 21.6% (Compared to 16-18% for most solar panels)

Maximum System Voltage – 1500 (UL) / 1500 (IEC)

Dimensions – 87.2 x 41.1 x 1.38 Inches (Including Frame)

Weight – 58.4 lbs

Snow / Wind Test – 5400 Pa / 3000 Pa

Warranty – At least 98% of nominal power during first year. Thereafter max. 0.5% degradation per year. At least 93.5% of nominal power up to 10 years. At least 86.5% of nominal power up to 25 years.
