Samlex PST-1000-24

Samlex PST-1000-24

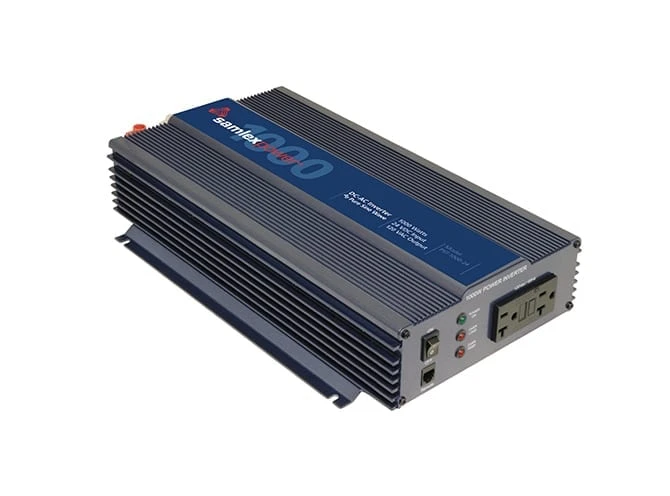

1000 Watt Pure Sine Wave Inverter

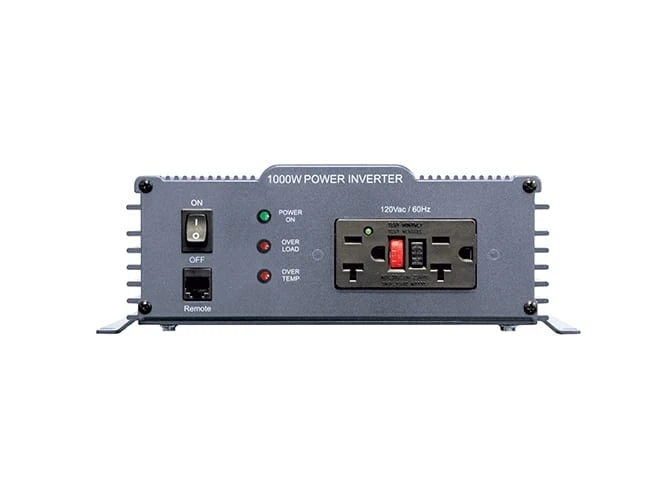

This high efficiency DC-AC inverter converts 24 Volts DC to 1000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. Features include overload protection, low battery alarm / shut down, low idle power draw. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

3 Year Limited Warranty

Features

• High efficiency
• Temperature controlled cooling fan – reduces energy consumption
• Low interference
• Wide operating DC input range: 21.0 – 33.0 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional  remote control (sold separately)
• Safety certified to UL standards, FCC compliant

Specifications

• Input: 24 VDC
• Output: 120 VAC
• Watts: 1000
• Surge: 2000 Watts
• Remote Control:  sold separately
• Weight: 8.8 (lbs)
• Weight: 4.0 (kg)
• Dimensions: 9.37 x 15.63 x 3.23 (in)
• Dimensions: 238 x 397 x 82 (mm)
• Safety: ETL to UL Standard
