Samlex PST-1000F-12

Samlex PST-1000F-12

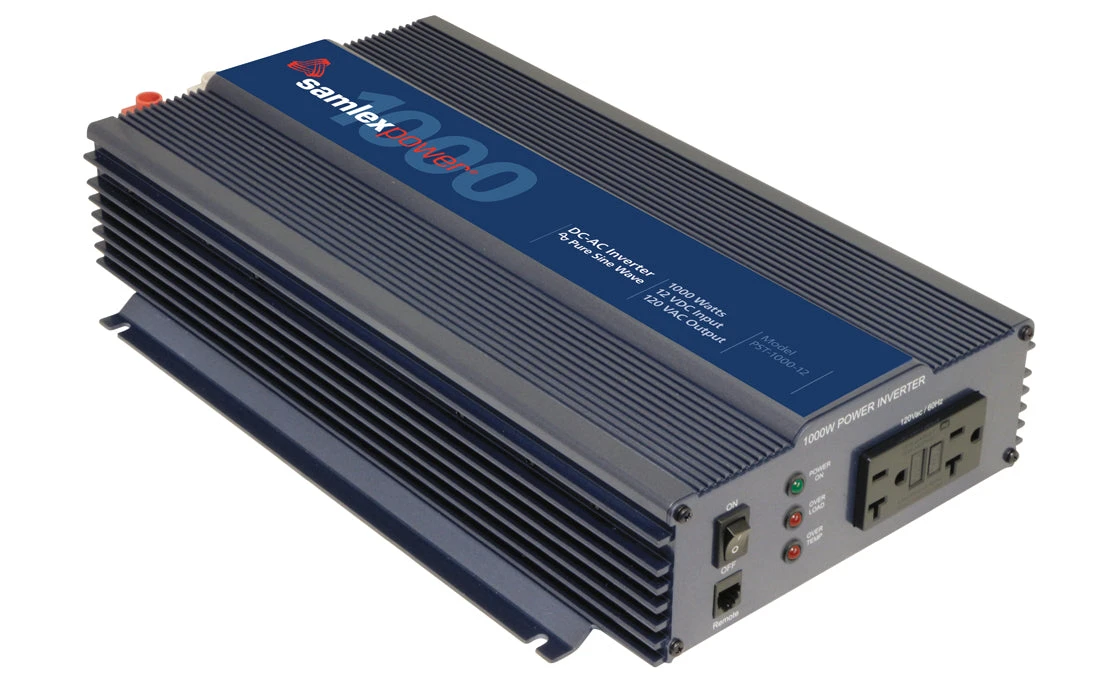

1000 Watt Pure Sine Wave Inverter

This high efficiency DC-AC inverter converts 12 Volts DC to 1000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. Features include Ignition ON/OFF – 1 wire input, overload protection, low battery alarm / shut down, low idle power draw. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

3 Year Limited Warranty

Features

• Wide operating temperature range: -13°F to 131°F / -25˚C to +55˚C
• Wide operating DC input range: 10.7 – 16.5 VDC
• Ignition ON/OFF – 1 wire input
• High efficiency and low interference
• Temperature controlled cooling fan – reduces energy consumption
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit.
• Low idle power draw
• Dual GFCI protected AC outlets
• Remote Control:  sold separately
• Safety certified to UL standards, FCC compliant

Specifications

• Input: 12 VDC
• Output: 120 VAC
• Watts: 1000
• Surge: 2000 Watts
• Remote Control:  sold separately
• Weight: 8.8 (lbs)
• Weight: 4.0 (kg)
• Dimensions: 9.37 x 15.63 x 3.23 (in)
• Dimensions: 238 x 397 x 82 (mm)
• Safety: ETL to UL Standard
