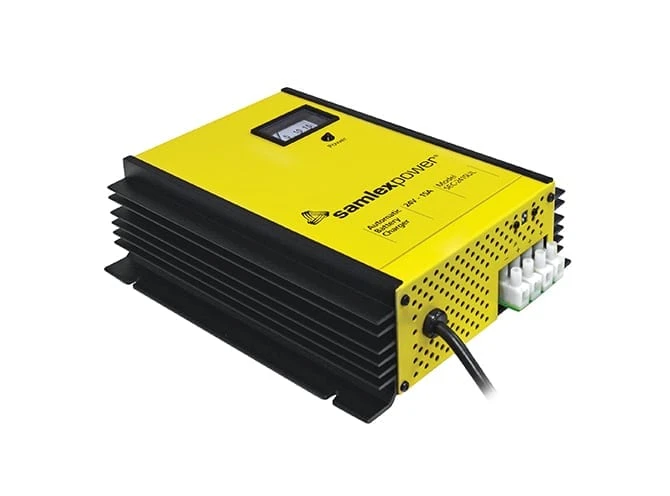

Samlex SEC-2415UL 24V Battery Charger

Samlex SEC-2415UL

24 Volt, 15 Amp Battery Charger. Safety listed.

This advanced fully automatic three-stage 15 Amp battery charger is ideal for charging all types of 24 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 VAC, 50/60 Hz (default) or 230 VAC, 50/60 Hz (internal jumper setting) AC source. User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries. The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 3 separate battery banks.

2 Year Limited Warranty

Features

• High efficiency
• Commercial Grade
• Lightweight
• Quiet operation
• Industry Proven Design – 1000s of units in operation
• User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries
• 120 VAC, 50/60 HZ (default) or 230 VAC, 50/60 Hz (internal jumper setting)
• Voltage meter display – Ammeter and LED power status
• For all types of Lead Acid batteries
• Charge with a battery load or stand alone
• Use as a power supply or DC UPS
• UPC: Universal Protection Circuit – short circuit, overload, reverse battery polarity
• Charge 3 banks of batteries at once – no isolator necessary

Specifications

• Input: 120 VAC, 50/60 Hz (default) or 230 VAC, 50/60 Hz (internal jumper setting)
• Output: 24 VDC
• Amps: 15 Amps
• Remote Control: 900-RC
• Weight: 6.4 (lbs)
• Weight: 2.9 (kg)
• Dimensions: 11.0 x 8.4 x 3.3 (in)
• Dimensions: 28.0 x 21.4 x 8.3 (cm)
• Safety: Intertek-ETL listed: Conforms to ANSI/UL Standard 1564 ; Certified to CAN/CSA STD. C22.2 No. 107.2

Applications

• Automotive
• Recreational vehicles
• Marine
• Communications sites
• Battery back-up systems
