SEAFLO 115vAC Circulation Pump 250GPH

The SEAFLO SFCPA1-G250-01 is a highly efficient centrifugal magnetic drive pump, eliminating the need for a shaft seal and are serviceable with a screwdriver. Designed for continuous use, this pump is able to be run fully submerged or in open air for complete moisture protection. It also can pump liquids with a specific gravity greater than water (higher viscosity).

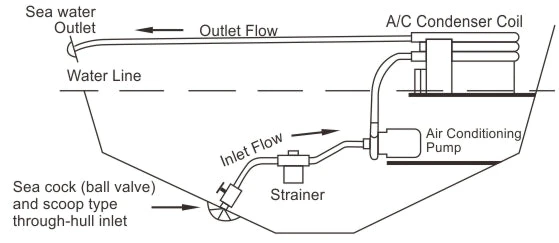

While originally designed as a replacement for boat air conditioning systems which use seawater pumped through a condenser coil, more crafty DIY’ers have used these for in-floor heating, radiant heaters, or even use lake & stream water to make their own air cooling systems.

Highlights

• For use with air conditioning systems up to 12,000 BTU
• More than 10,000 hours average lifetime
• 5GPM seawater circulation pump (250GPH)
• Can run dry without damage
• Continuous duty
• Replaces any brand marine air conditioning pump
• Compatible with other marine AC systems including Dometic, Webasto, Cruisair, Marine Air, Koolair, and more!

Specifications

• Voltage: 115V
• Power Rating: 56W
• Maximum liquid temperature: 130℉ (54C)
• Head: 2.7 m
• Flow Rate: 5GPM (19LPM)
• Inlet: 3/8″ NPT & 3/4″ NPT
• Outlet: 1/4″NPT
• Weight: 4.7lbs (2.15 Kg)
• Duty Cycle: Continuous

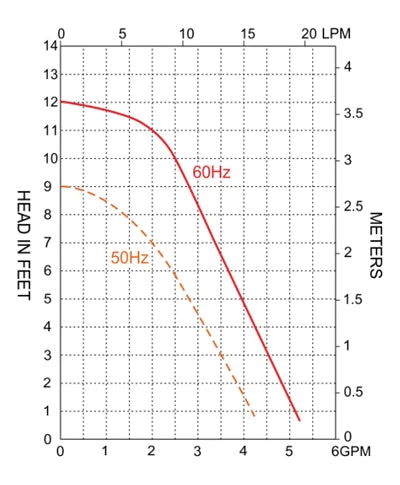

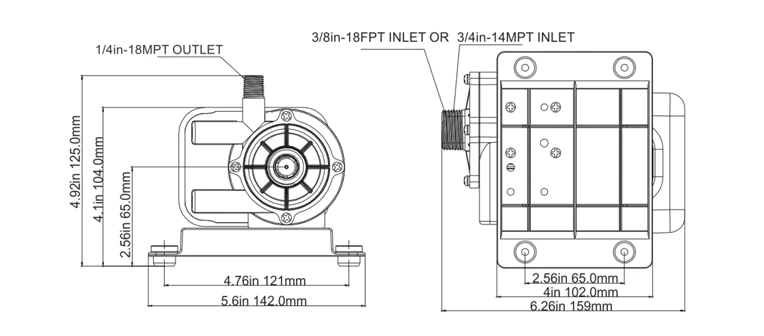

For non-flammable liquids only. See images for flow graph and other details.
