SEAFLO 115vAC Circulation Pump 500GPH

The SEAFLO SFCPA1-G500-01 is a highly efficient centrifugal magnetic drive pump, eliminating the need for a shaft seal and are serviceable with a screwdriver. Designed for continuous use, this pump is able to be run fully submerged or in open air for complete moisture protection. It also can pump liquids with a specific gravity greater than water (higher viscosity).

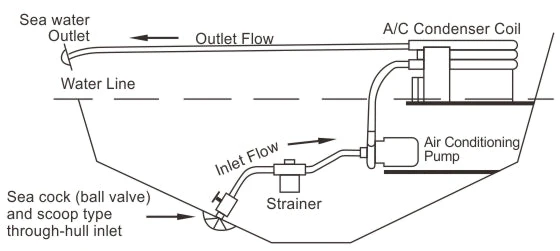

While originally designed as a replacement for boat air conditioning systems which use seawater pumped through a condenser coil, more crafty DIY’ers have used these for in-floor heating, radiant heaters, or even use lake & stream water to make their own air cooling systems.

Highlights

• For use with air conditioning systems up to 24,000 BTU
• More than 10,000 hours average lifetime
• 8.5GPM seawater circulation pump (500GPH)
• Can run dry without damage
• Continuous duty
• Replaces any brand marine air conditioning pump
• Compatible with other marine AC systems including Dometic, Webasto, Cruisair, Marine Air, Koolair, and more!

Specifications

• Voltage: 115V
• Power Rating: 115W
• Maximum liquid temperature: 130℉ (54C)
• Head: 4.3 m
• Flow Rate: 8.5GPM (31LPM)
• Inlet: 3/4″ NPT
• Outlet: 1/2″NPT
• Weight: 7.5lbs (3.42 Kg)
• Duty Cycle: Continuous

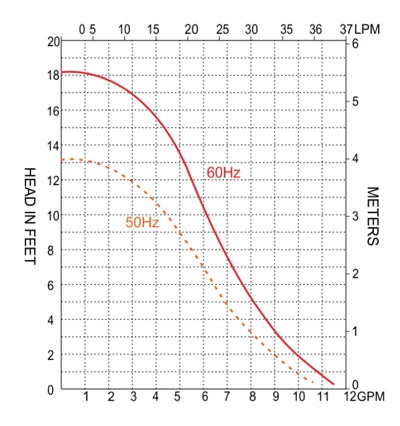

For non-flammable liquids only. See images for flow graph and other details.
