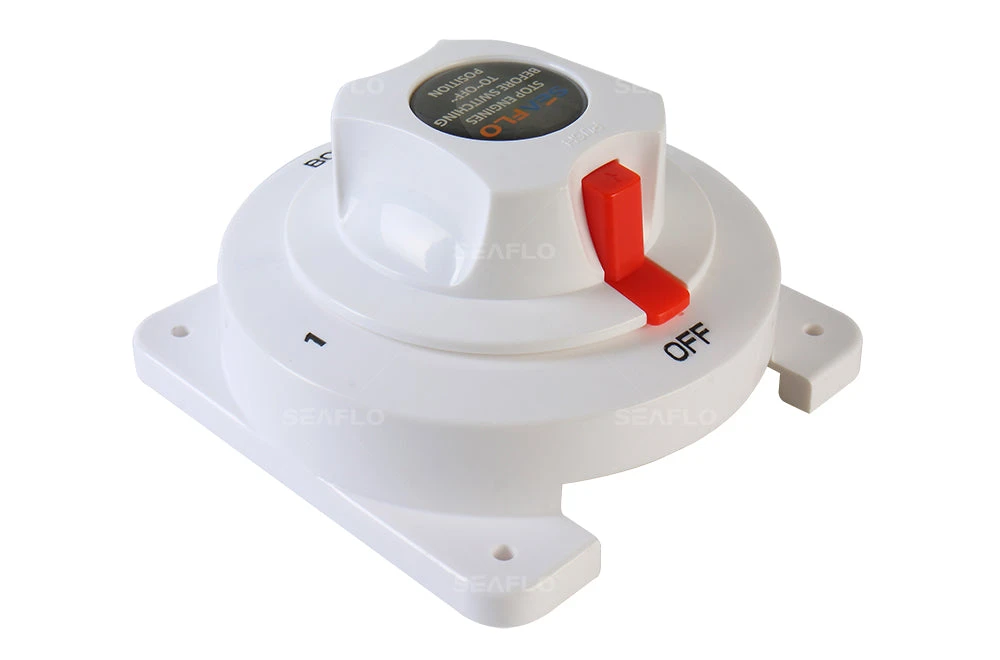

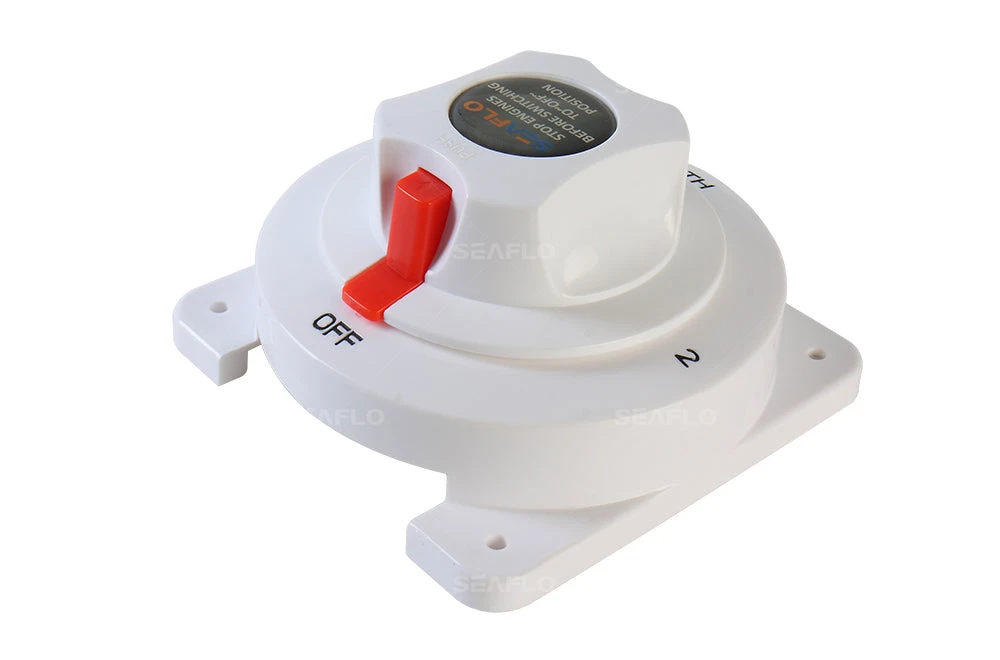

SEAFLO Battery Selector Switch

This SEAFLO Battery Selector Switch will allow users to switch between the battery bank for engine starting, and the other for operating auxiliary electrical equipment. Commonly used for RV’s and boats which utilize separate battery banks for starting and equipment operation, the switch also allows the 2 battery banks to be operated in parallel for emergency use (i.e. starting battery goes dead, you can use the aux battery bank for starting the engine).

Features / Specifications

• Compact, sturdy, and durable
• Allows the user to select 1 battery for engine starting and the other battery for operating auxiliary electrical equipment
• Batteries may be placed in parallel by switching to (BOTH) for emergency usage

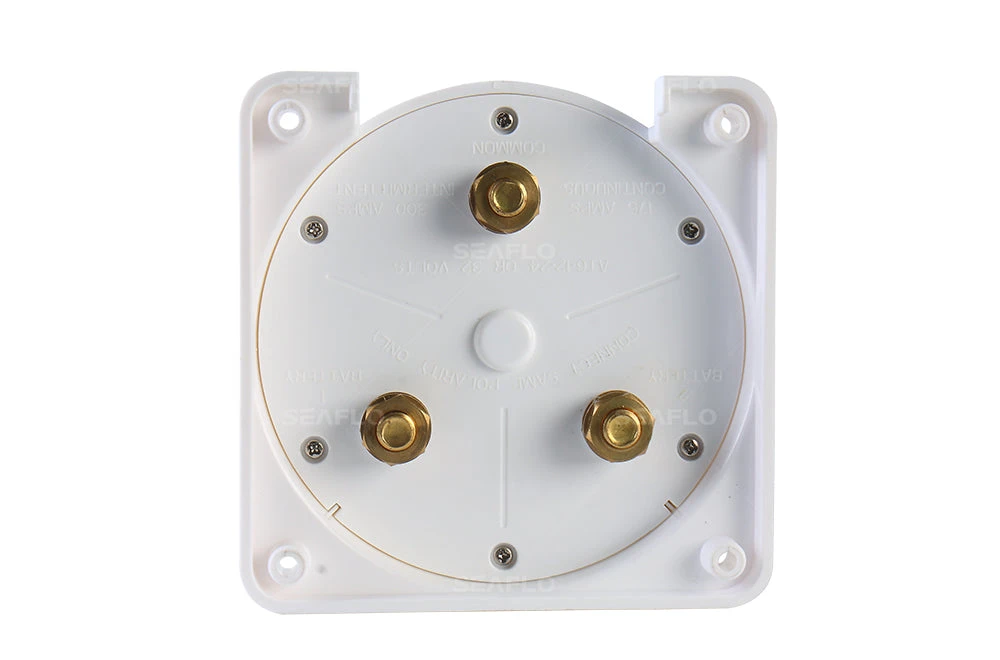

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Can be installed in any position
• 175A continuous duty at DC-12V
• 300A intermittent duty at DC-12V
• Suitable for 6V,12V,24V and 32V supply system
• Innovative electromagnetic design
