Separett Tiny Toilet 1270 W/ Internal Urine Tank

Free Shipping

Excludes remote locations.

The Separett Tiny 1270 toilet has set the standard for environmentally friendly compact toilets higher than ever. In terms of compact design, comfort and use, its small design is the equal of a modern washroom in every way.  The self-contained Tiny 1270 toilet has been specifically designed for small spaces such as bunkies, tiny houses, RVs, boats, and small cabins.

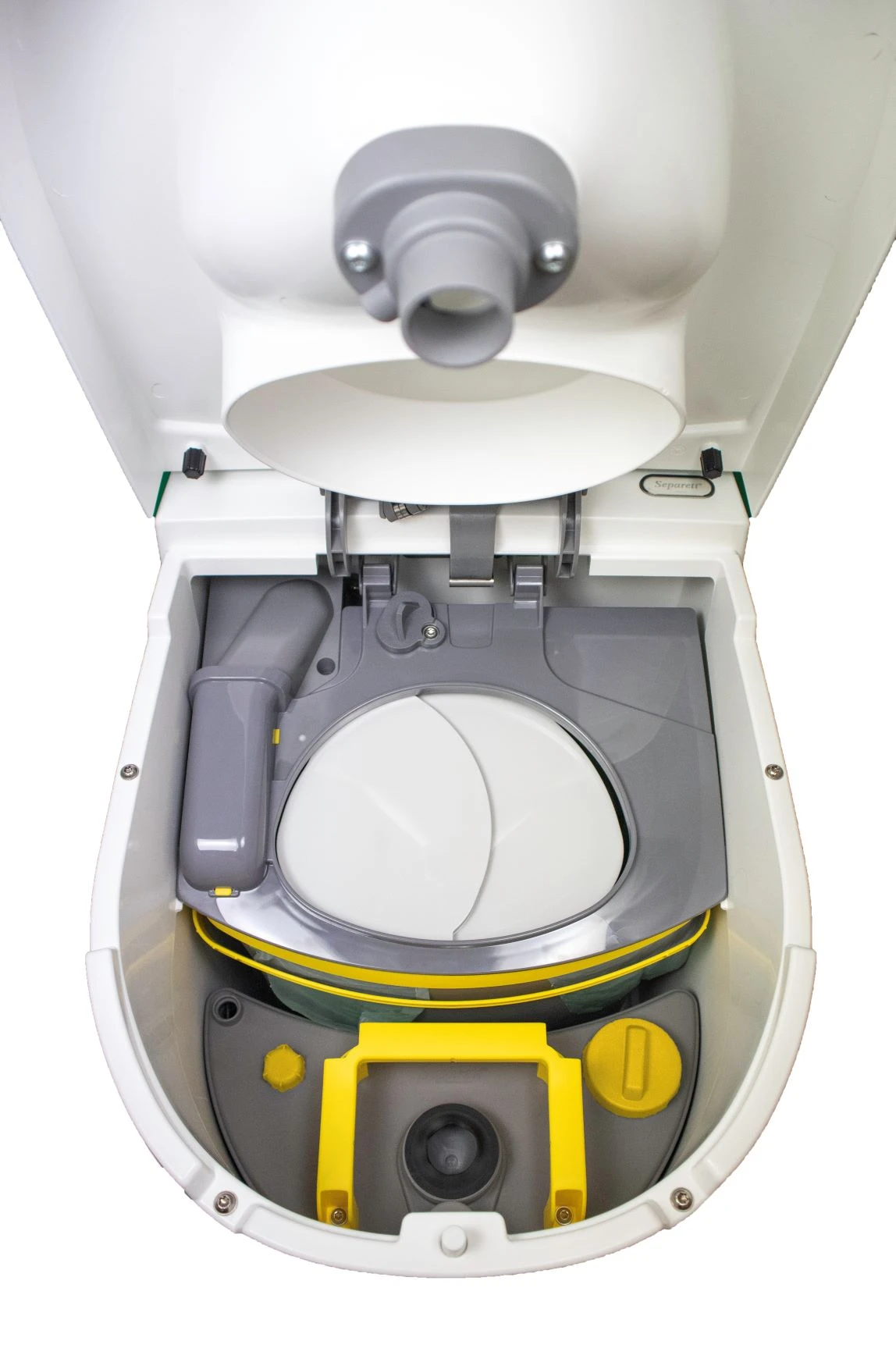

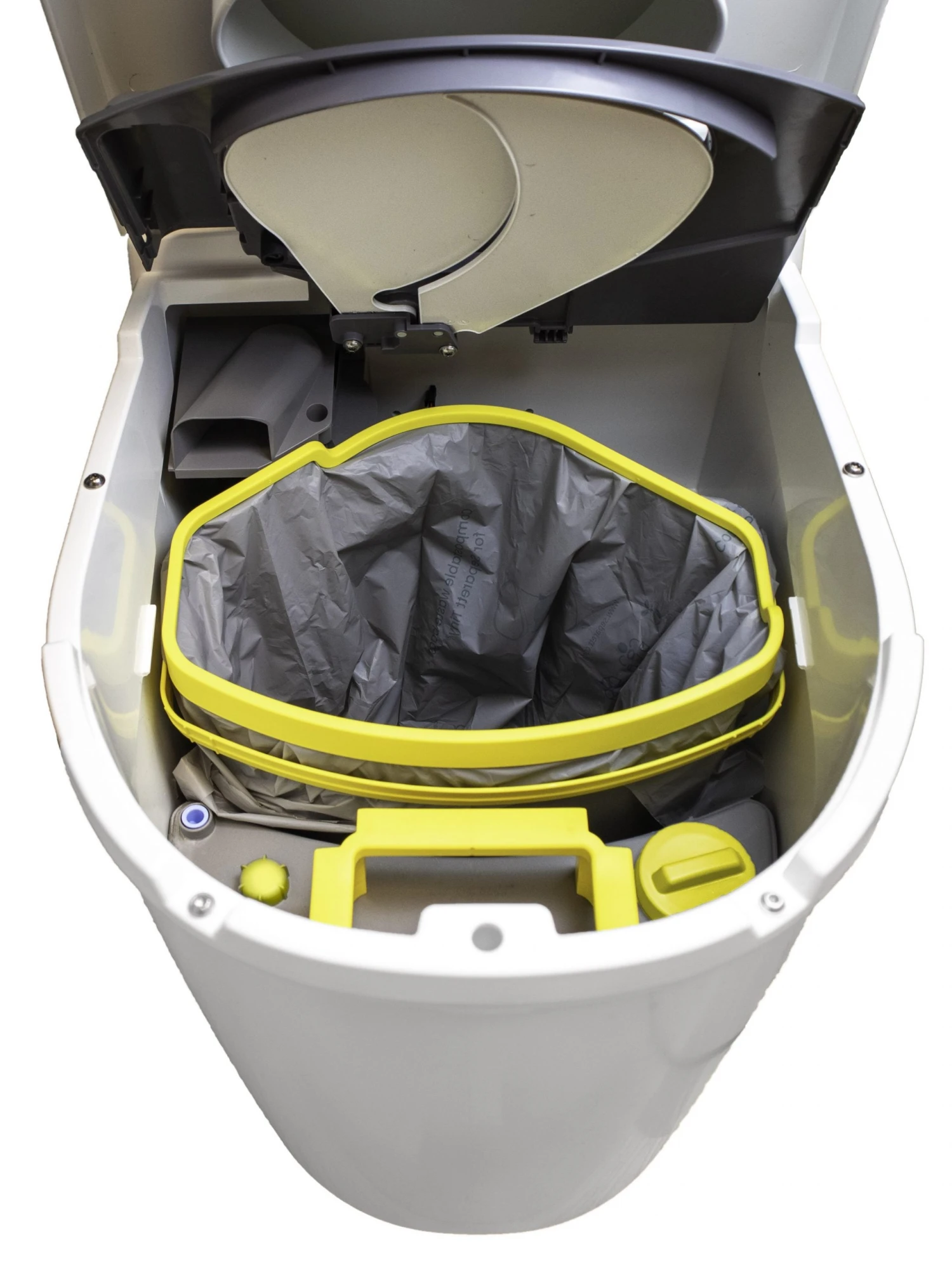

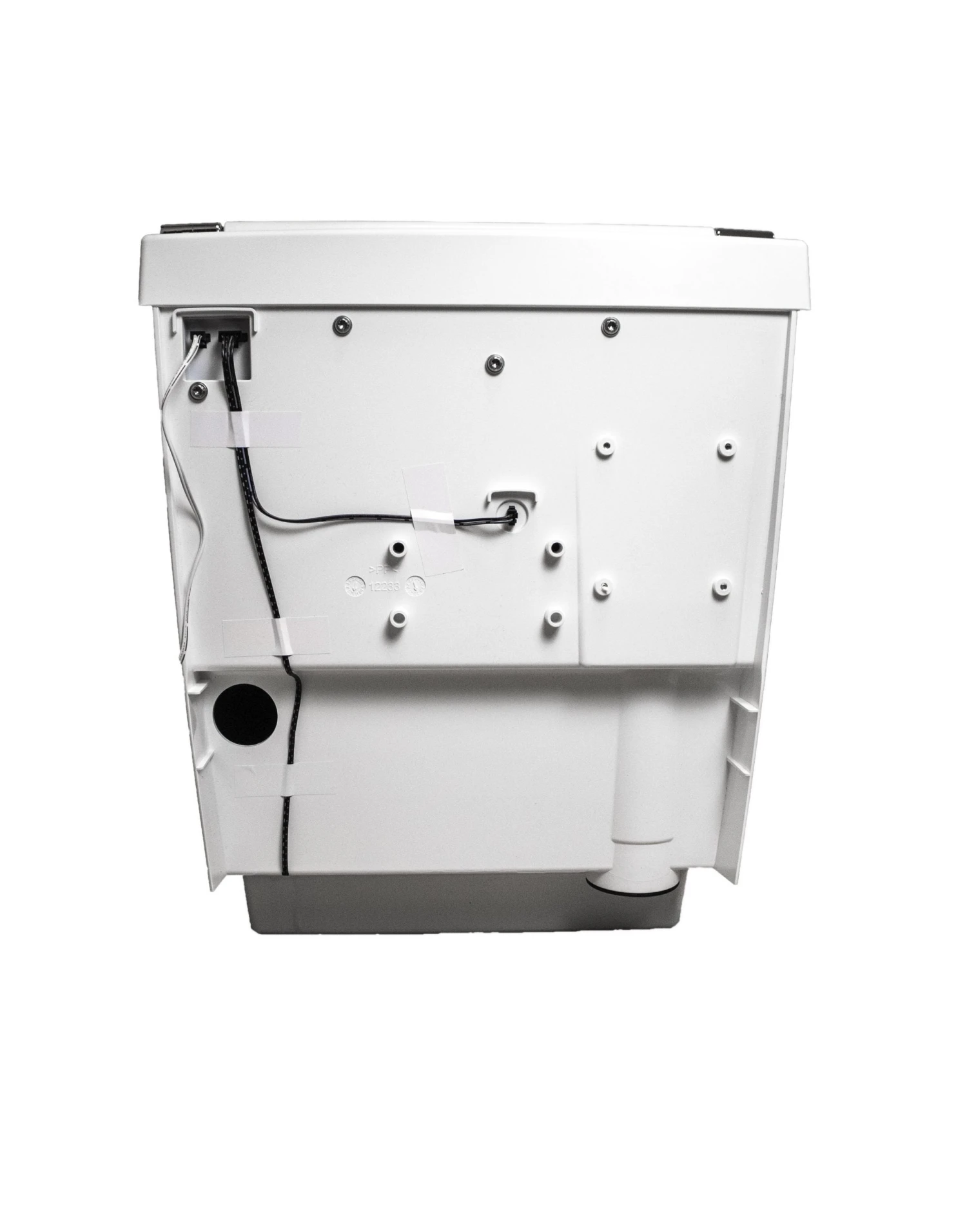

Liquids and solids are separated in the bowl so that each can be disposed of individually. Solids from the toilet’s rear 14.5 litre container can be composted or incinerated. The urine is fed into a front portable 7.1 litre holding tank and easily removed for use as fertilizer or disposed of in any number of ways. The Tiny can also be converted to drain the urine to an outside leach bed or grey water tank with the urine outlet pipe.  The built-in fan expels odours and condensation from the toilet and bathroom quietly and effectively. The vent duct can be run behind the toilet straight through an outer wall or run up through the roof. The Separett Tiny 1270 is supplied complete for basic installation, including a vent pipe (Ø50 mm) to go through a wall.

For locations that do not have access to a 110-120V power supply, no problem, the Tiny 1270 includes both a 110-120V adaptor and a 12V power cable with alligator clips to connect directly to a 12V battery. The fan (1.6W, 210mA) is perfect for battery and solar power. Operating time using a 12V, 100Ah battery is about 3-4 weeks. The Tiny 1270 can also be vented using a wind turbine vent for those totally off the grid with no power at all.

The Separett Tiny 1270 can be installed in both warm and unheated locations and will work perfectly well irrespective of the room temperature.

Material: Recyclable high gloss polypropylene
Solids container: 14.5 l polypropylene
Liquids container: 7.1 l polypropylene
Voltage/power: 12 V/1.6 W
Energy consumption: 0.04 kWh/day
Connection: 1.55m cable. Adapter 110/230V-12V
Noise level: <30 dB(A)
Max user weight: 150 kg
Seat height: 44 – 45,2 cm
Dimensions: 49.7 cm deep x 39.8 cm wide x 47 cm high
Pipes: Ventilation out Ø 50 mm | Urine out Ø 32 mm

Highlights
– Self-contained toilet
– Separates urine & feces for greatly reduced odors
– Concealing view screen
– Specifically designed for small spaces
– Perfect for bunkies, tiny houses, RVs, boats and small cabins
– Portable urine tank 7.1 litres
– Works in any temperature
– Can be connected to existing venting pipe
– Perfect on or off-grid
