SRNE 3000 Watt 24V / 120V / Kedron 7.2KWH LifePo Solar Kit



Sold Out

Currently Out of Stock of the Kedron 12.8V 300AH batteries. Please contact us for other available battery options.

Excludes Remote Locations

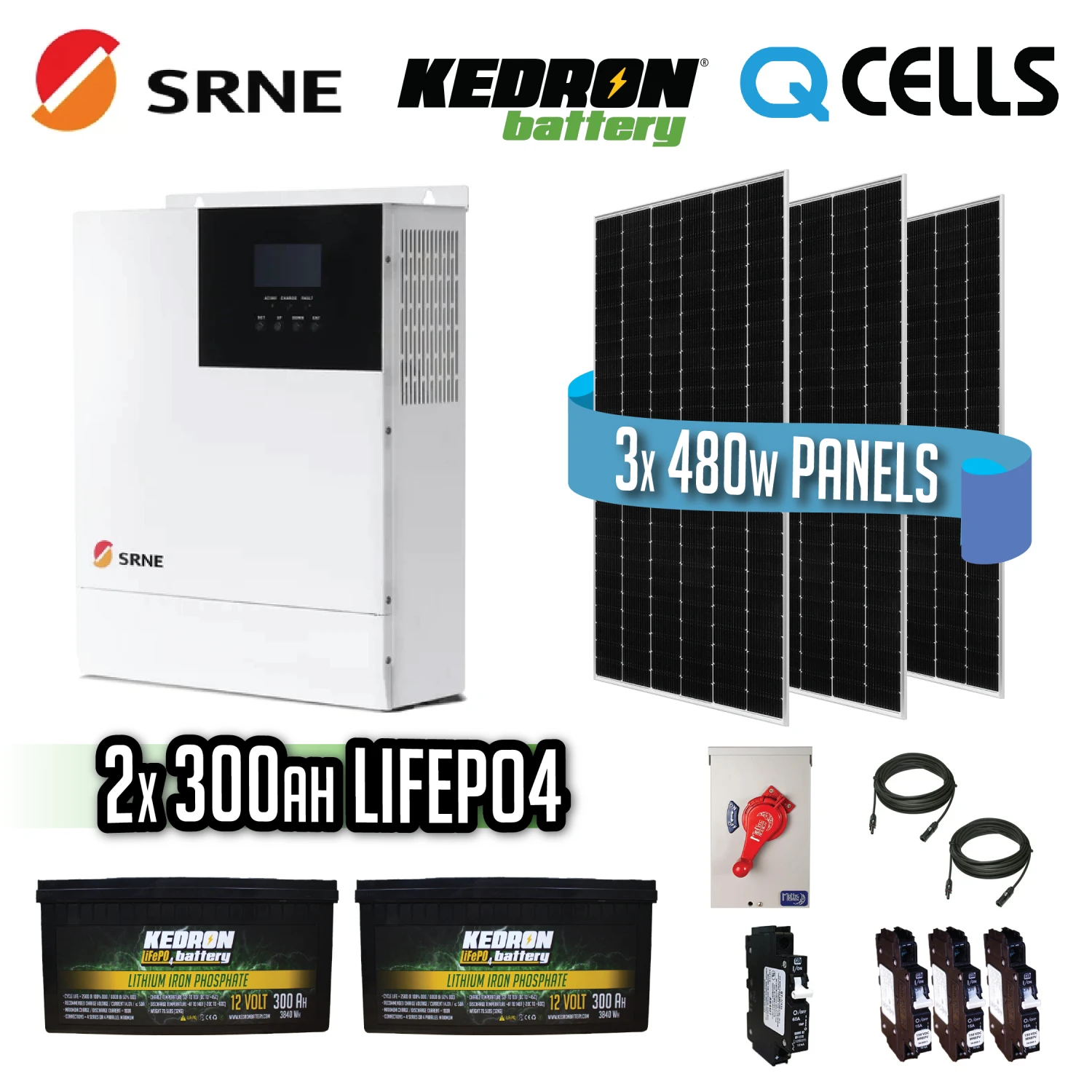

This Cabin Energy Solar Kit includes:

All in One Systems – The Ultimate In Convenience!

Included in the SRNE Bundle:

• SRNE All In One solar charger, 24V inverter & battery charger
• Midnite Mini DC Disconnect with 125Amp DC Breaker
• Midnite 63 Amp DC Breaker MNEPV
• #8 Stranded Wire x 15FT
• #2 Stranded Wire Pair x 5FT
• Copper lugs and miscellaneous wires to connect everything together.

r – exclusive to The Cabin Energy™ !

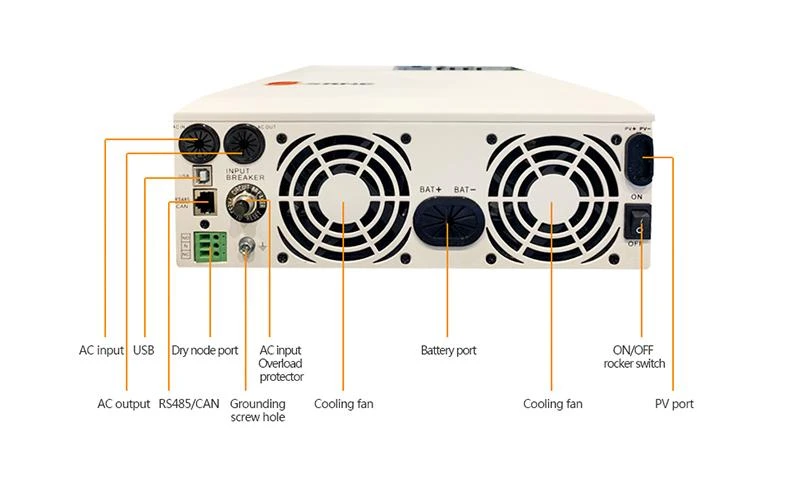

The SRNE HF2430U60-100 is an ETL certified 24 volt all-in-one hybrid solar unit with an integrated LCD display screen. Incorporating a fully programmable 3000 watt pure sine inverter with 120vAC output, 40A battery charger, and 60A MPPT charge controller this 3 in 1 hybrid solution simplifies your off-grid solar installation saving you time and money!

Highlights

• Designed to work with 24vDC battery banks
• Multifunction LCD display showing all AC & DC input/output parameters including LED indicators for operating status
• Can be programmed to work with lead acid, AGM, LiFePO4, or other common battery storage systems
• 120vAC output: 3000W pure sine inverter, 4500W surge rated
• 60A MPPT charge controller capable of handling up to 1600W of PV input @ 100VDC
• 2-wire autostart capable – will turn generators on/off automatically when programmed (compatible 2-wire autostart generator required)

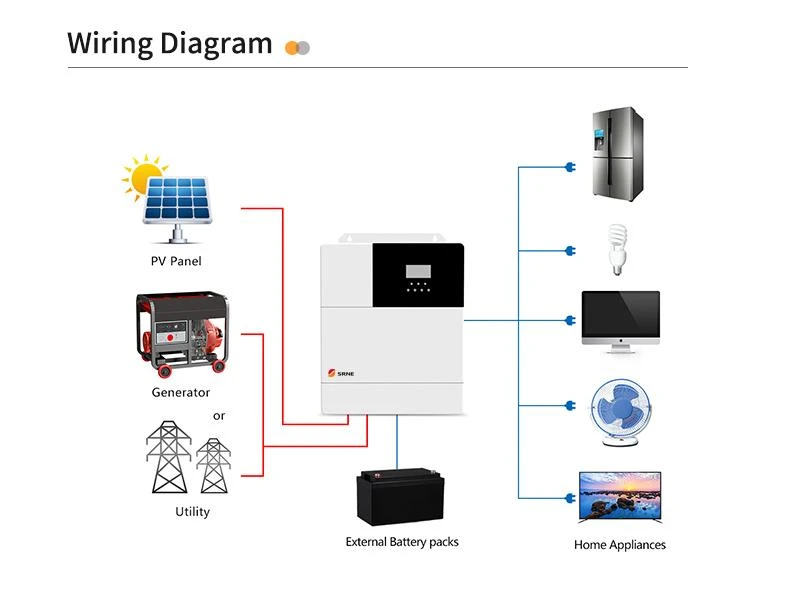

• Integrated transfer switch with AC pass-through: powers your building while charging the battery bank with a generator or other AC power source
• Variable speed cooling fan
• On/Off rocker switch for AC output control
• RS485/CAN & USB connections with optional WiFi data logger (sold separately unless otherwise stated)
• Protections: PV over current, PV reverse current, PV reverse polarity, AC input over voltage, AC input under voltage, short circuit, overload, and over temperature

Programmable Charging Modes

• Hybrid Charging (SNU – Default Setting): This mode is ideal for off-grid applications. The system will use solar PV to charge the battery bank when the sun is shining. If you start your generator, the generator will also charge the battery bank together with solar. At night or during periods of inclement weather, the generator can be started as needed & will charge the battery bank exclusively.
• Solar Priority (CSO): This mode is used in a grid-tie application and uses solar PV during the day to charge the battery bank & power AC loads, and grid power at night to maintain the battery bank.
• Grid Priority (CUB): This mode is used in a grid-tie application and uses grid power to keep the battery bank charged. If the grid power fails, the system reverts to solar PV battery charging. This would be similar to a UPS backup system.
• Solar Only (OSO): This mode uses solar PV charging only. Charging with a generator or grid power is deactivated.

Output Modes

• Generator Priority (UTI – Default Setting): In an off-grid application, this mode will use the inverter power via the battery bank, and automatically switch to generator power to service AC loads when the generator is started.
• Solar Priority (SOL): this mode will switch the output AC power to grid or generator if the solar PV isn’t sufficient. This mode is typically used in a grid-tied situation.
• inverter Priority (SBU): this mode uses the inverter as priority AC output power, and will only switch to grid power if the battery bank voltage drops below the minimum preset level.

Downloads

Qcells Solar Panel Bundle includes: 1920 Watts Total

• 3 x 480 Watt Q.Peak Duo XL-G10.3 78 Cell Solar Panels
• 3 x 20FT Pair #10 PV Wire with MC4 Connections
• 1 x MidNite string combiner / disconnect
• 3 x MidNite 15A DC Breakers



Why QCells? Here’s why!!

BREAKING THE 21% EFFICIENCY BARRIER

Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 21.6%.

LOW ELECTRICITY GENERATION COSTS

Higher yield per surface area, lower BOS costs and up to 80 watts more module power than standard 144 half-cell modules.

ENDURING HIGH PERFORMANCE

Long-term yield security with Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™.

EXTREME WEATHER RATING

High-tech aluminium alloy frame, certified for high snow (5400Pa) and wind loads (2400Pa).

A RELIABLE INVESTMENT

Inclusive 12-year product warranty and 25-year linear performance warranty.

STATE OF THE ART MODULE TECHNOLOGY

Q.ANTUM DUO combines cutting edge cell separation and innovative 12-busbar design with Q.ANTUM Technology.

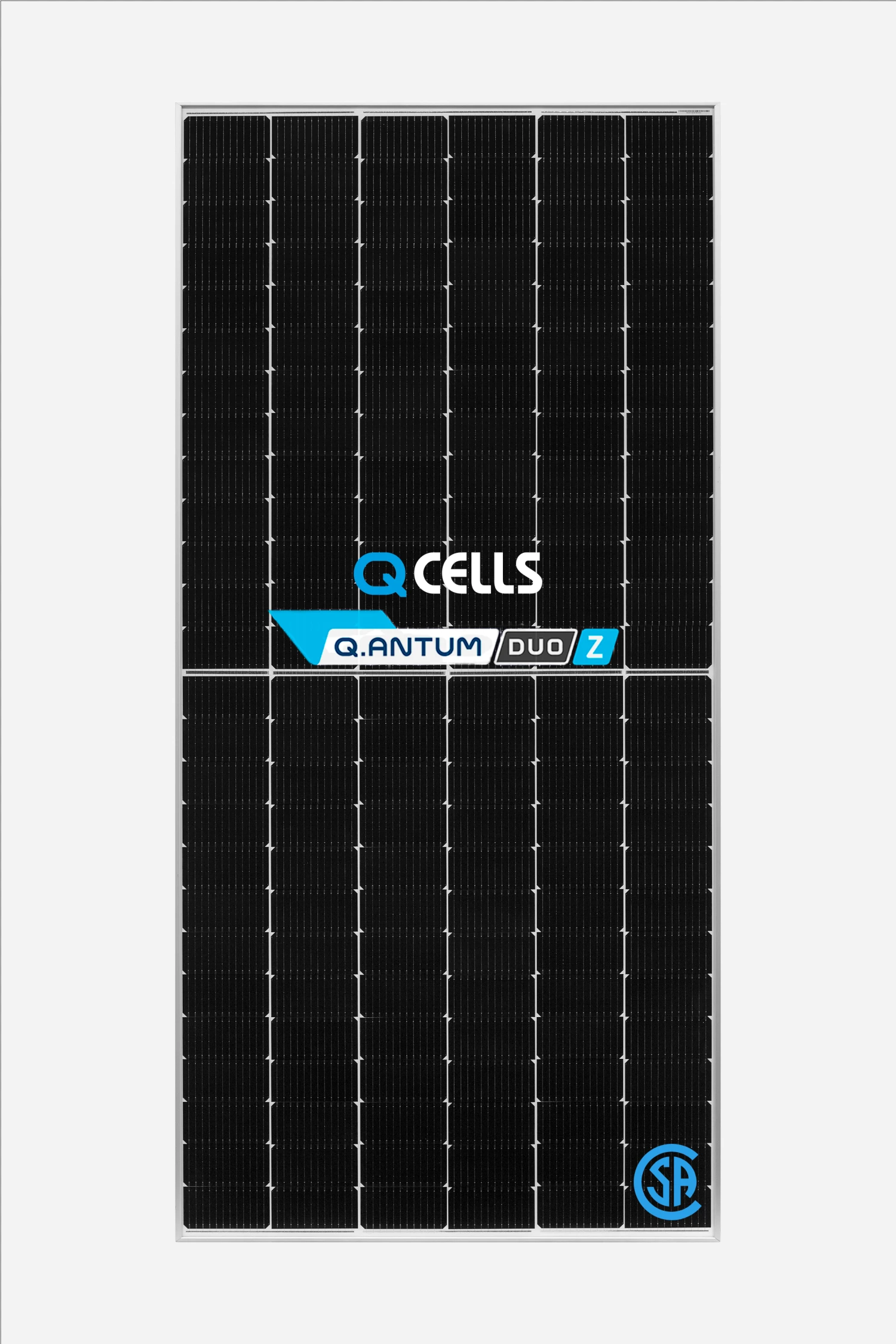

 The high-performance module Q.Peak Duo XL-G10.3 is the ideal solution for residential, commercial or utility applications thanks to a combination of its innovative Q.ANTUM DUO Z technology and its cutting edge cell interconnection. This 1500 UL/IEC Solar module ensures superior yields with up to 480 watt power while yielding very low LCOE. (Levelized Cost of Electricity)

Nominal Power – 480 Watts

Efficiency – 21.6% (Compared to 16-18% for most solar panels)

Maximum System Voltage – 1500 (UL) / 1500 (IEC)

Dimensions – 87.2 x 41.1 x 1.38 Inches (Including Frame)

Weight – 58.4 lbs

Snow / Wind Test – 5400 Pa / 3000 Pa

Warranty – At least 98% of nominal power during first year. Thereafter max. 0.5% degradation per year. At least 93.5% of nominal power up to 10 years. At least 86.5% of nominal power up to 25 years.

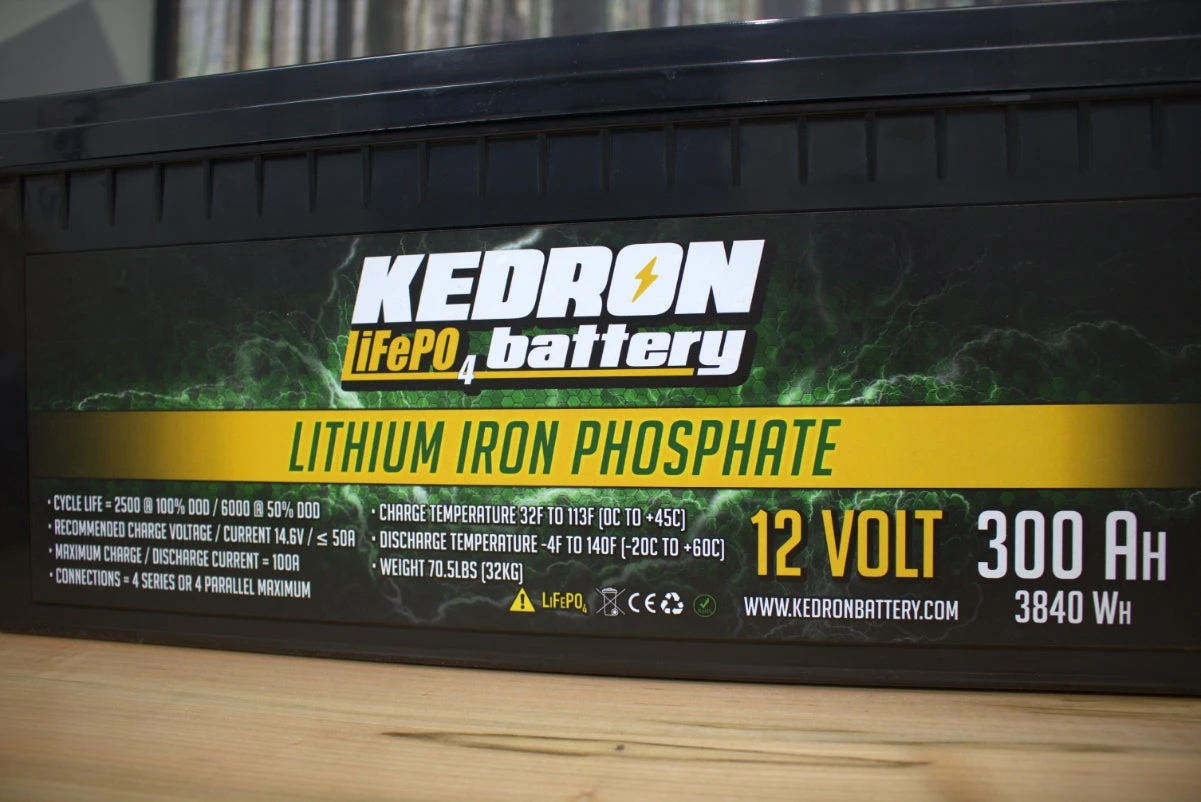

Kedron LifePo Battery Bundle Includes: 7.2KWH Total

• 2 x Kedron 12.8V 300AH LifePo Batteries
• 1 x 16″ 2/0 Battery Connect Cables

With exceptional cycle life, our new Lithium Iron Phosphate batteries weigh about 50% less vs equivalent lead-acid battery models, and more importantly, can handle prolonged storage below 50% SOC and deep cycling without damage: No sulfation. No stratification. Less worries.

Highlights

• Higher usable capacity & true LiFePO4 performance
• 12 Volt – 300Ah / 3480Wh capacity
• Weight: 70.5lbs (32kg)
• Dimensions WxDxH: 19-5/8″ x 9-1/2″ x 9″ (499mm x 241mm x 229mm) including terminal
• 60 Month Limited Warranty (36mo LiFePO4 cells + additional 24mo for BMS)

Safety

• Integrated battery management system (BMS) for safe charging & discharging

• UN3480 compliant, UN38.3 cell certification, and CE system certification
• Expected cycle life ~2500 @ 100% DOD / ~6000 @ 50% DOD

Design

• Fast charge & discharge performance
• Cold weather operating system allows for uninterrupted wintertime use
• Recommended charge voltage / current = 14.6V / <50A
• Maximum charge / discharge current = 100A
• Updated 2022 design: charge & discharge in cold temperatures!
• Normal operating temperature range: -22F to 140F (-30C to +60C)
• Maintenance-free
• Parallel Support = 4 Units max (4 x 12v parallel = 1200Ah @ 12v)
• Series Support = 4 Units max (4 x 12v series = 300Ah @ 48v)

60-Month Warranty

Kedron LiFePO4 batteries come with a 36-month warranty for cells beginning at the time of purchase, plus an additional 24-month BMS replacement. In the unlikely event the battery is defective, all warranty claims will need to be accompanied by proof of purchase, installer contact information, and images of the setup including details about the connected equipment and charge profile settings. Warranty will be refused for any batteries deemed to be incorrectly installed or abused.
