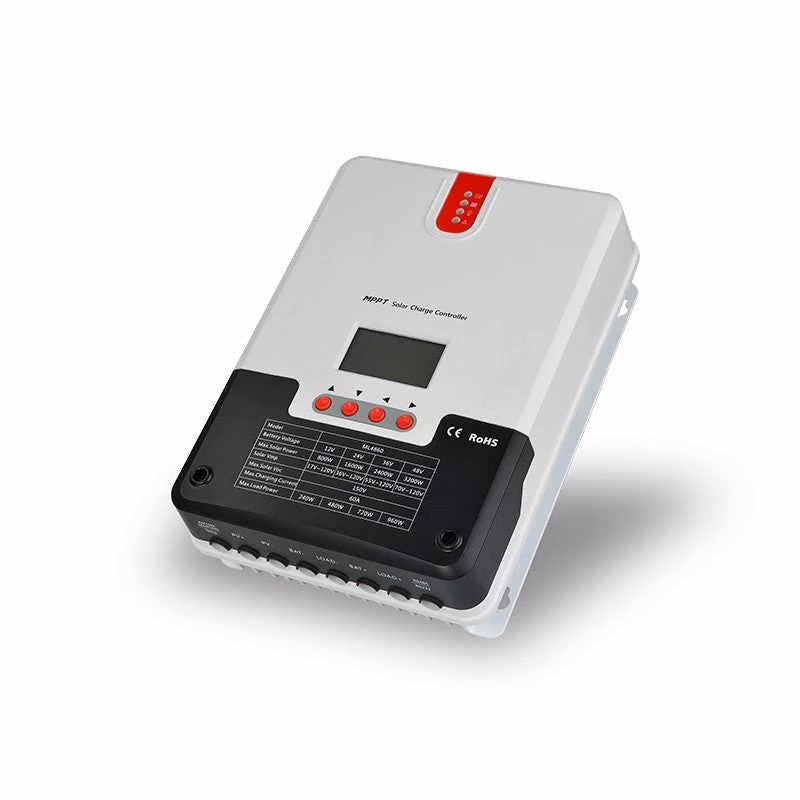

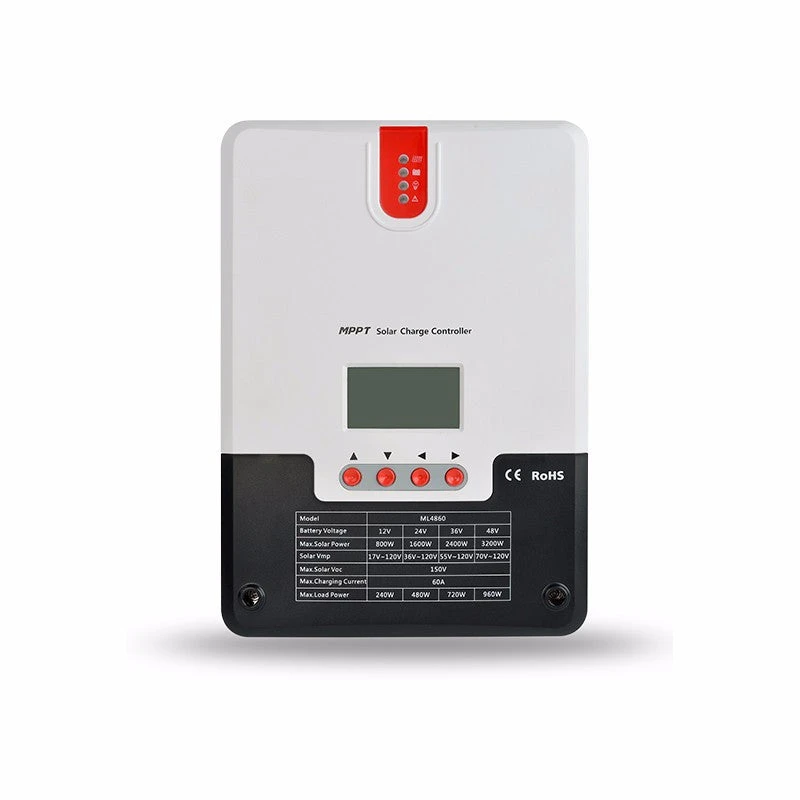

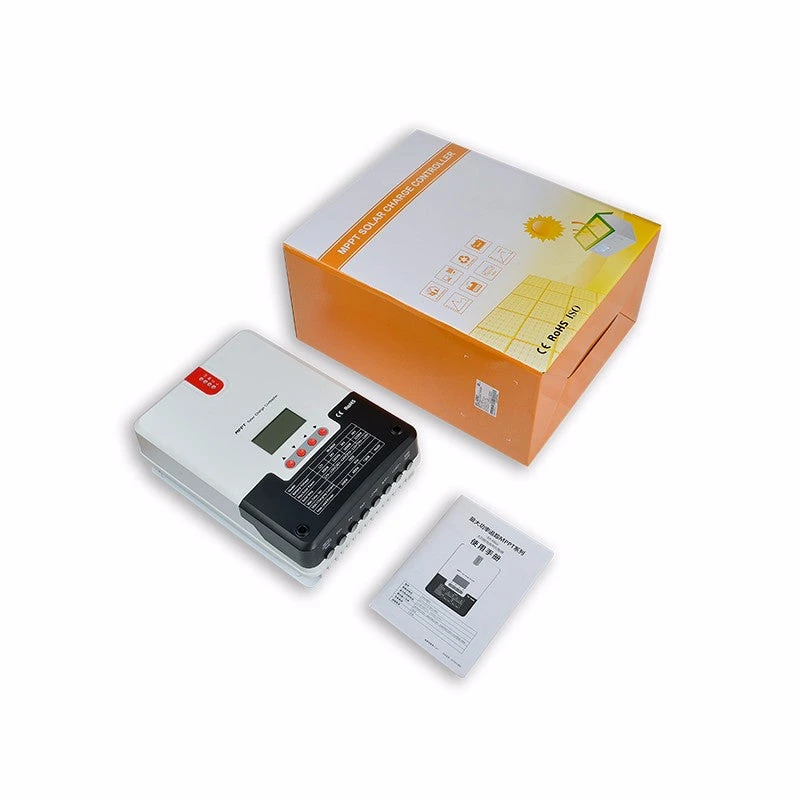

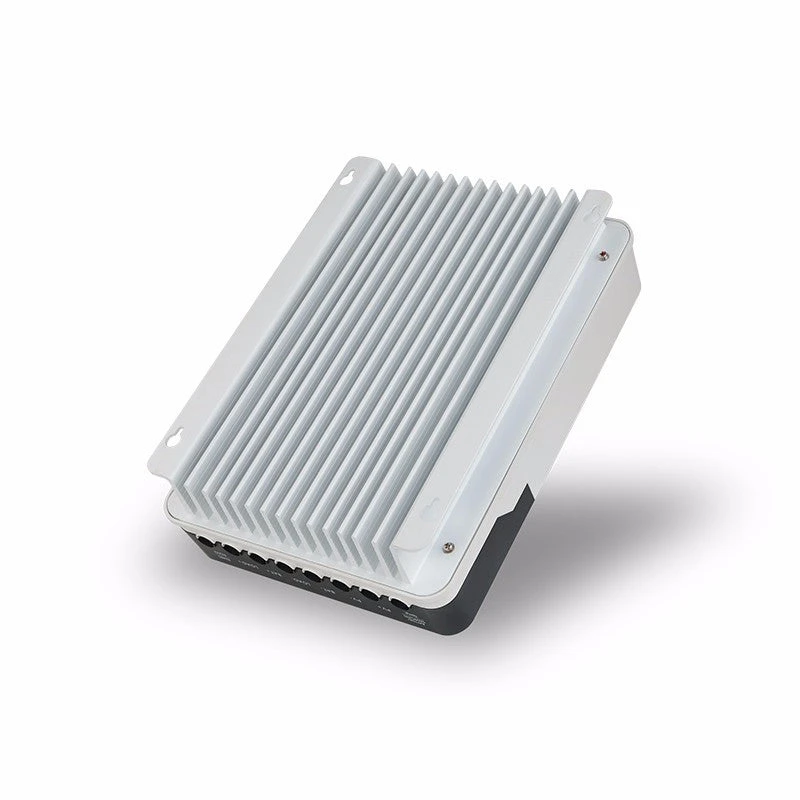

SRNE (ML4860) 60 Amp MPPT Charge Controller

Product Features:

• With the advanced dual-peak or multi-peak tracking technology, when the solar panel is shadowed or part of the panel fails resulting in multiple peaks on the I-V curve, the controller is still able to accurately track the maximum power point.
• A built-in maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems, and raise the charging efficiency by 15% to 20% compared with the conventional PWM method.
• A combination of multiple tracking algorithms enables accurate tracking of the optimum working point on the I-V curve in an extremely short time.
• The product boasts an optimum MPPT tracking efficiency of up to 99.9%.
• Advanced digital power supply technologies raise the circuit’s energy conversion efficiency to as high as 98%.
• Different charging program options including those for gel batteries, sealed batteries and open batteries, customized ones, etc. are available.
• The controller features a limited current charging mode. When the solar panel power exceeds a certain level and the charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.
• Instantaneous large current startup of capacitive loads is supported.
• Automatic recognition of battery voltage is supported.
• LED fault indicators and an LCD screen which can display abnormality information help users to quickly identify system faults.
• Historical data storage function is available, and data can be stored for up to a year.
• The controller is equipped with an LCD screen with which users can not only check device operating data and statuses, but also modify controller parameters.
• The controller supports standard Modbus protocol, fulfilling the communication needs of various occasions.
• All communications are electrically isolated, so users can rest assured in usage.
• The controller employs a built-in over-temperature protection mechanism. When temperature surpasses the set value, the charging current will decline in linear proportion to the temperature and discharging will be halted so as to curb the temperature rise of the controller, effectively keeping the controller from being damaged by overheat.
• With the help of an external battery voltage sampling function, battery voltage sampling is exempted from the effect of line loss, making control more precise.
• Featuring a temperature compensation function, the controller can automatically adjust charging and discharging parameters in order to extend the battery’s service life.
• The controller also features a battery over-temperature protection function, and when the external battery temperature exceeds the set value, charging and discharging will be shut off so as to protect components from being damaged by overheat.
• TVS lighting protection

Model: ML4860
System voltage: 12V/24V/36V/48V Auto
No-load loss: 0.7 W to 1.2W
Battery voltage: 9V to 70V
Max. solar input voltage: 150V (25 degrees centigrade), 145V (-25 degrees centigrade)
Max. power point voltage range
Battery voltage +2V to 120V
Rated charging current: 60A
Rated load current: 20A
Max. capacitive load capacity: 10000uF
Max. photovoltaic system input power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Conversion efficiency: Less than or equal to 98%
MPPT tracking efficiency: Greater than 99%
Temperature compensation factor: -3mv/degrees centigrade/2V (default)
Operating temperature: -35 degrees centigrade to +45 degrees centigrade
Waterproof level: P32
Weight: 3.6kg
Communication method: RS232 RS485
Altitude: Less than or equal to 3000m
Product dimensions: 285*205*93mm
